Next-Generation Processing Power
With four times the processing performance of MPC One+, MPC One G2 is made for speed with plenty of headroom to handle larger standalone sessions. It keeps your workflow tight, no matter how complex your beats become.
Built to Produce Full Songs
MPC One G2 supports up to 16 stereo audio tracks, giving you the flexibility to build complete tracks using just this one system. Layer sounds, record audio, and shape full arrangements without needing to leave the standalone environment.
More Plugins, More Possibilities
Run up to 32 plugin instruments in a single project, allowing you to build richer, more detailed productions. From layered textures to detailed arrangements, you have the tools to expand and shift your sound without limitation.
One Cable, All the Connections
USB-C connectivity provides multichannel audio, expanded MIDI, and device support over a single connection. It simplifies your setup while giving you the flexibility to connect to other gear and production environments.
Hybrid Workflow Capability
MPC One G2 integrates easily into a DAW-based studio when needed. With Ableton Live Control Mode and project import and export, you can move between standalone creation and computer-based production without breaking your workflow.
Sample Sounds from Anywhere
Capture sounds from phones, tablets, and external devices directly into your MPC One G2 using fast, flexible sampling workflows. Bring in new ideas instantly and turn them into playable, editable elements inside any session.
Technical Specifications
MPC One G2 defines a new generation of MPC, built to take you from idea to finished track with the speed, power, and workflow of true standalone production.
Digital Audio System
ADCs: 24-bit
DACs: 24-bit
Digital Signal Processing: 32-bit floating point
Line Inputs 1–2 (2) balanced 1/4” (6.35 mm) TRS
Frequency Response: 20 Hz – 20 kHz (+0/-0.8 dB)
Dynamic Range: 113 dB (A-weighted)
Signal-to-Noise Ratio: 111 dB (1 kHz, +4 dBu, A-weighted)
THD+N: 0.002% (1 kHz, +4 dBu, -1 dBFS)
Maximum Input Level +16 dBu
Sensitivity -13.5 dBu
Gain Range: 29.5 dB
Line Outputs 1–2
(2) balanced 1/4” (6.35 mm) TRS
Frequency Response: 20 Hz – 20 kHz (+0/-0.8 dB)
Dynamic Range: 113 dB (A-weighted)
THD+N: 0.003% (1 kHz, -1 dBFS)
Maximum Input Level: +9 dBu
Output Impedance: 100 Ω
Headphone Output: (1) 1/8” (3.5 mm) stereo headphone output
Frequency Response: 20 Hz – 20 kHz (+0/-0.8 dB)
Dynamic Range: 112.5 dB (A-weighted, 32Ω)
THD+N: 0.006% (1 kHz, -1 dBFS, 32Ω)
Maximum Output Level: 28.8 mW @ 32Ω

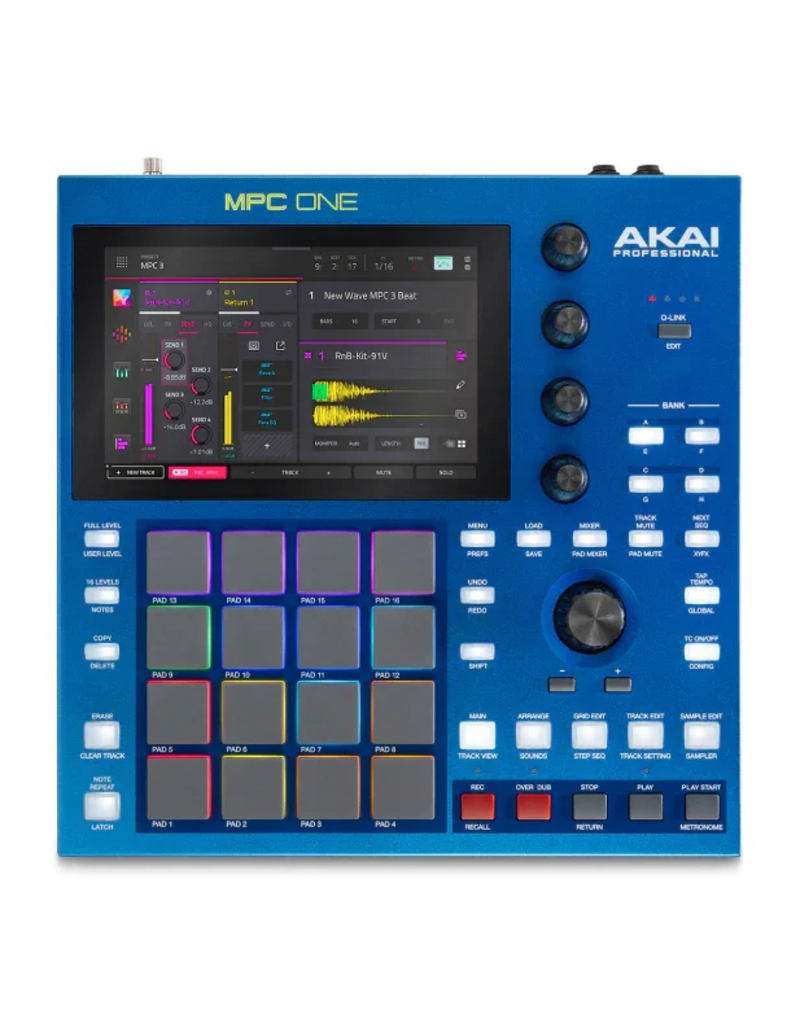

Pads

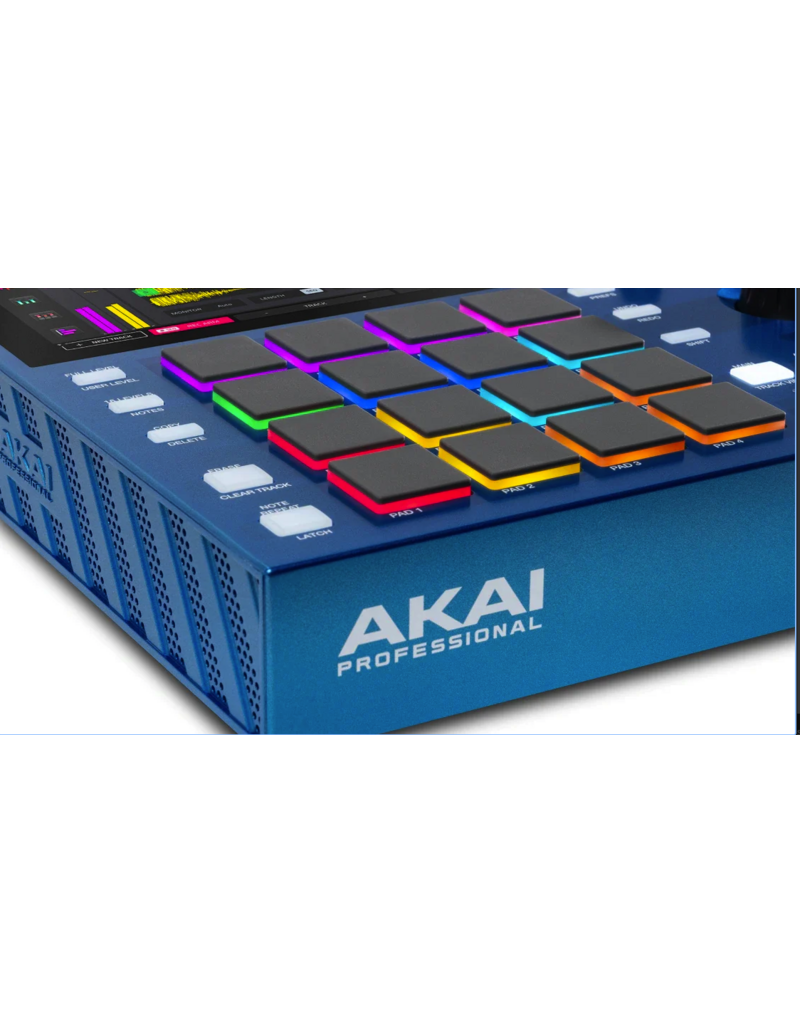

(16) velocity- and pressure-sensitive pads, RGB-backlit
(8) banks accessible via Pad Bank buttons

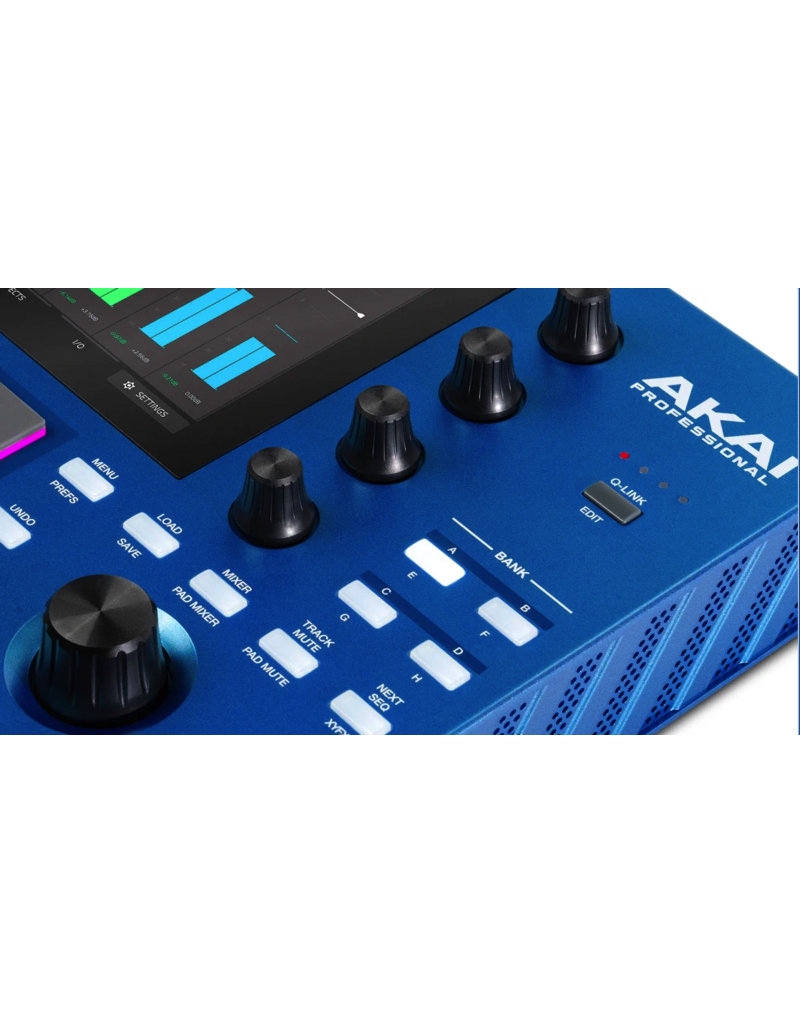

Knobs
(4) 360° touch-sensitive Q-Link Knobs
(4) Q-Link Knob columns accessible via Q-Link button
(1) 360° encoder for display navigation and selection via push
Buttons
(31) dedicated function buttons; red-, amber-, or green-backlit

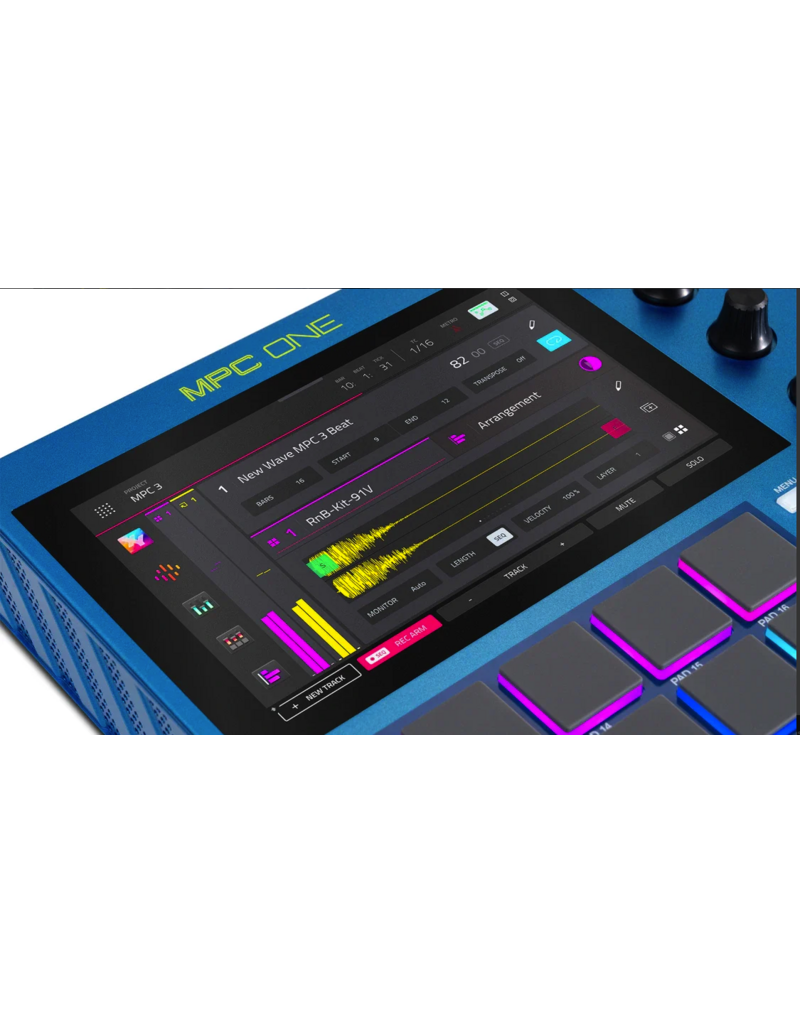

Display
7.0” / 177 mm (diagonal)
5.9” x 3.7” / 151 x 94 mm (width x height)
Full-color LED-backlit display with touch interface
CPU
Processor: Eight-core ARM® processor
RAM: 4 GB
Storage: 64 GB internal storage
File System Compatibility
File Systems:
Audio Formats: AIF/AIFF, FLAC, MP3, OGG, WAV
Wireless
Wi‑Fi Frequency: 2.4 GHz / 5 GHz
Wi‑Fi Standard: 802.11a/b/g/n/ac
Wi‑Fi Max Power:
2.4 GHz: +17 dBm
5 GHz: +17 dBm
Bluetooth Version: 5
Bluetooth Profile: HID
Bluetooth Max Power: +10 dBm

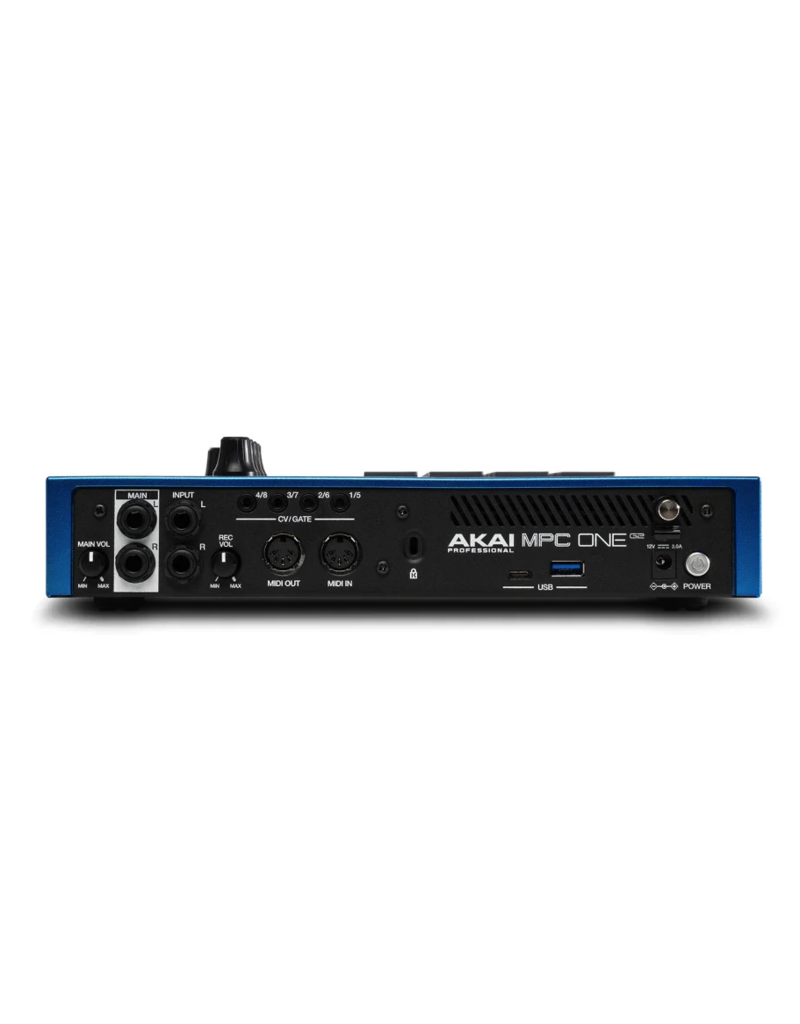

Connections
2) 1/4” (6.35 mm) TRS inputs (1 stereo pair)
(2) 1/4” (6.35 mm) TRS outputs (1 stereo pair)
(1) 1/8” (3.5 mm) stereo headphone output
(1) 5-pin MIDI inputs
(1) 5-pin MIDI outputs
(4) TRS CV/Gate jacks (8 outputs total)
(1) USB Type-A port
(1) USB Type-C port

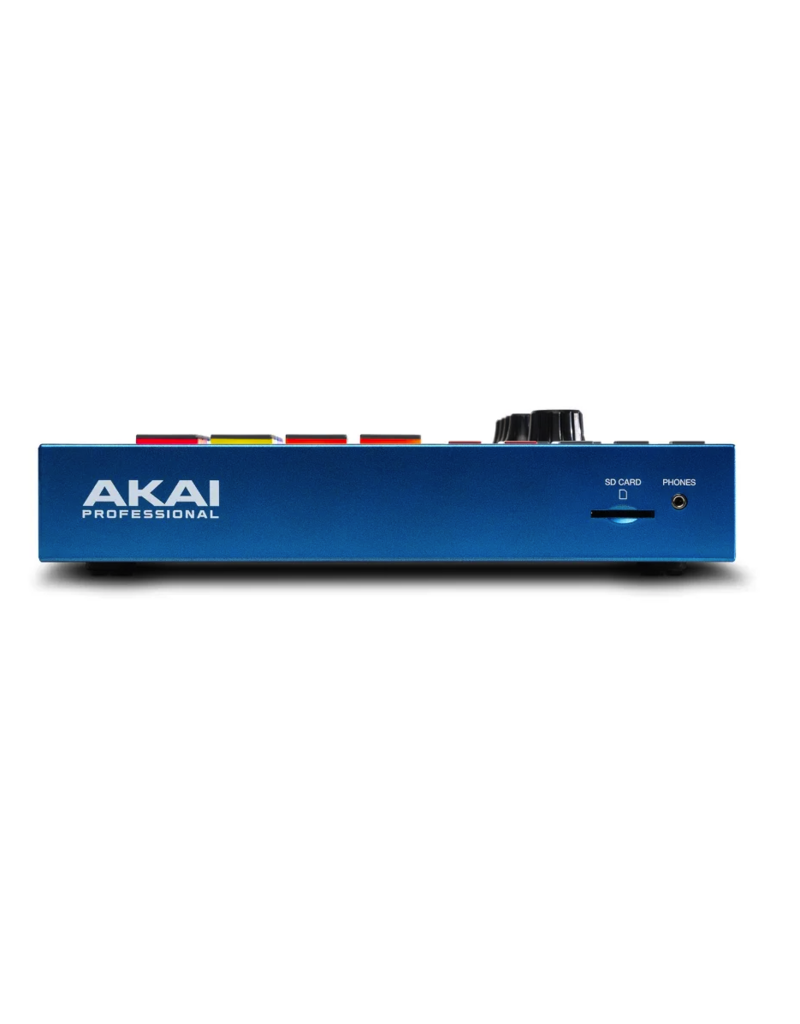

(1) SD card slot
(1) power adapter input
Power via included power adapter:
12 V, 3 A, center‑positive
Dimensions (W × D × H)
10.7” x 10.7” x 2.1”
272 x 272 x 53 mm
Weight
4.7 lbs
2.1 kg
