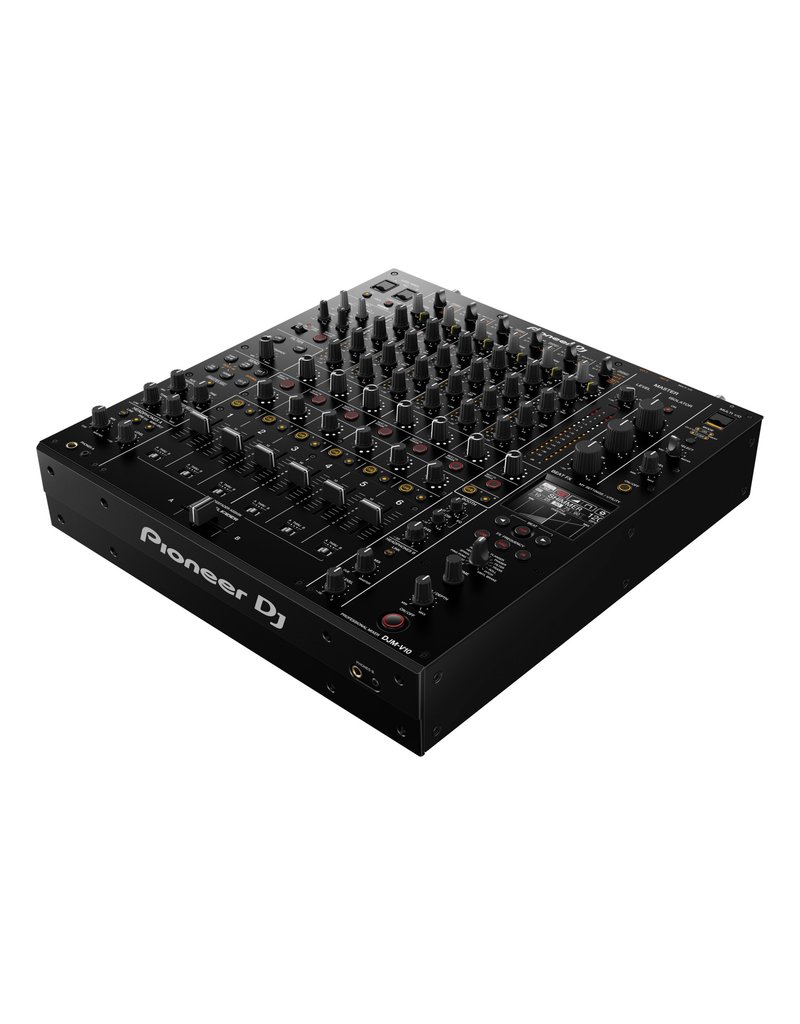

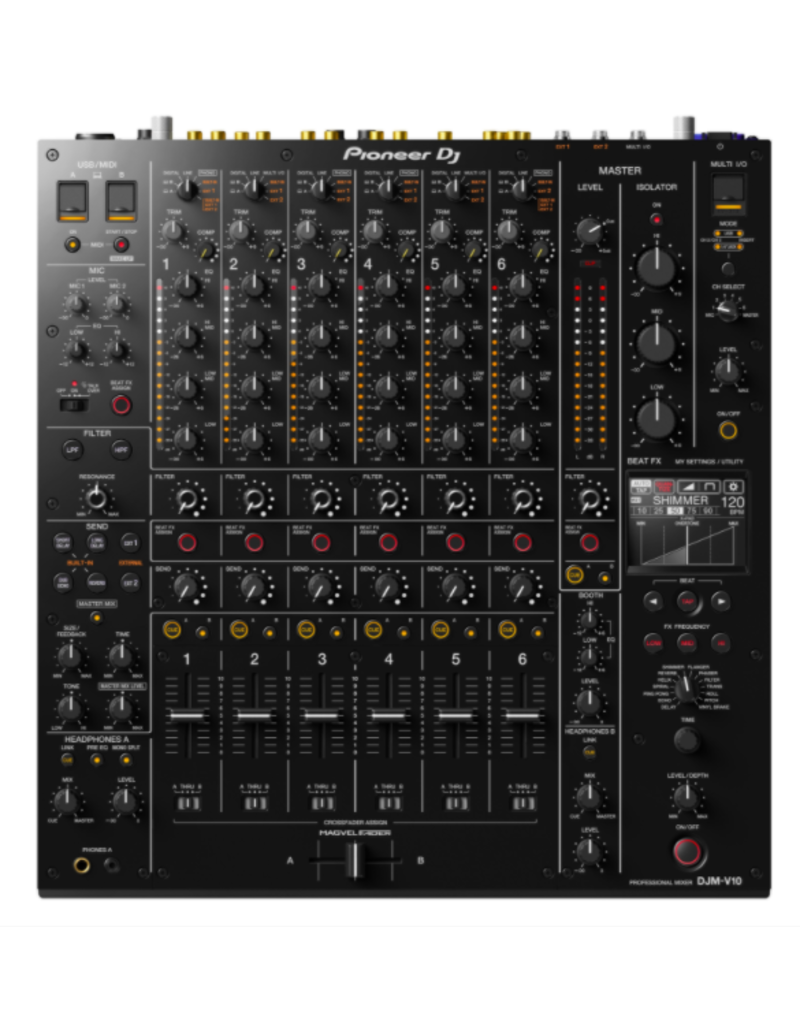

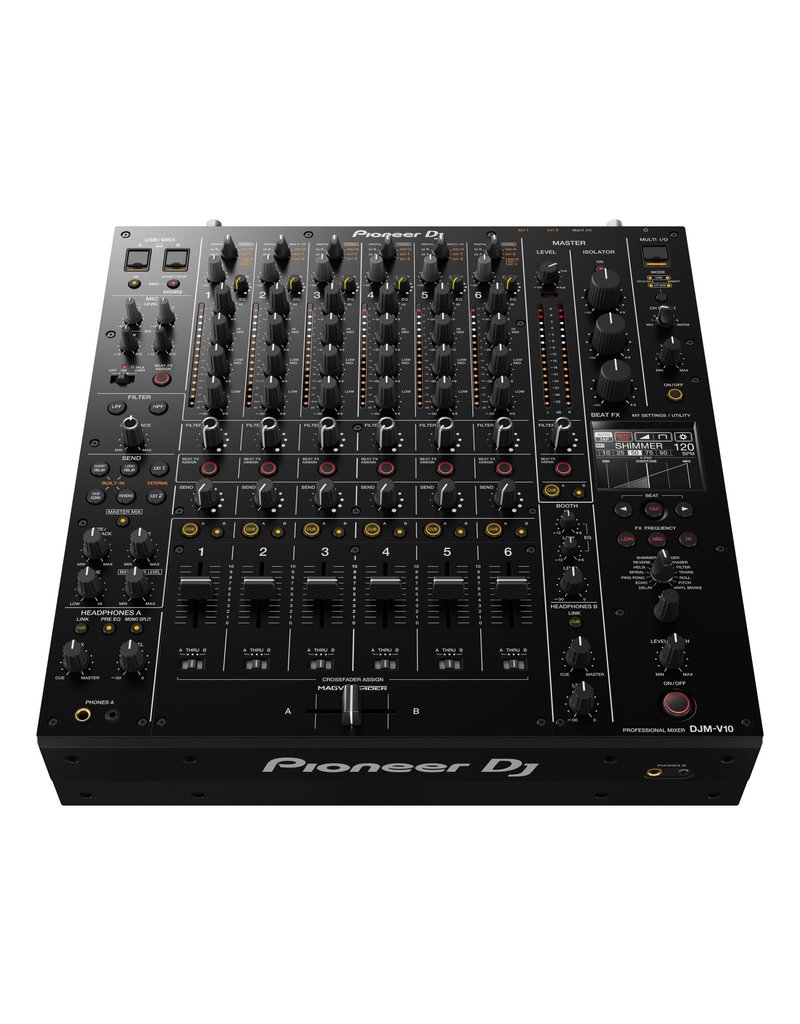

Forge a new sound with the DJM-V10; a new breed of mixer, born of fresh thinking. It’s built to allow the most creative DJs to craft original soundscapes.
This 6-channel unit – loaded with unique features – produces warm audio full of energy and presence. So, take full control of your mix and get ready to create something the crowd has never heard before – either performing solo or back-to-back with another DJ.
KEY FEATURES
ELITE SOUND QUALITY
Feel the warmth of natural sound and hear every detail. Studio-quality 64-bit mixing and dithering processing, 32-bit high-quality A/D and D/A converters, a low-jitter clock circuit, and many other components all work to produce a full low-end, vibrant mids, and precise highs.
6 CHANNELS WITH A WIDE RANGE OF INPUTS
You’re free to create your perfect setup with 6 channels and a host of different input types.
4-BAND EQ AND COMPRESSOR
Take full control of your mix with the newly developed 4-band EQ. A built-in compressor enables further adjustment of the loudness of your tracks.
EFFECTS FOR MORE CREATIVE EXPRESSION
The expanded send/return section enables you to add external FX, or even combine them with built-in FX. Create unique sounds; the possibilities are nearly limitless
3-BAND MASTER ISOLATOR
Effortlessly control the tone of your entire mix with the 3-band master isolator, featuring new boost/cut curves and adjustments to the crossover frequencies and other parameters. Grab the large dials and drive the crowd wild by drastically changing the sound.
DUAL HEADPHONES OUTPUT AND BOOTH EQ
The DJM-V10 makes back-to-back monitoring simple and comfortable. You can tweak the sound in the DJ booth just the way you like.
A lockable power cord is included for added reliability and to avoid accidental disconnections.
*In selected regions, a non-lockable power cable is supplied instead.
Record and archive your mixes via iPhone or iPad, upload your sounds to cloud services or effortlessly live-stream your sessions. Find out more.
Make full use of rekordbox's low-latency DVS feature for intuitive, smooth scratching. Find out more.
Use Serato DVS to control and scratch with CDJs or turntables (Serato DJ Club Kit license required, available separately – Serato DJ Pro compatibility is coming soon).
Enjoy DVS control via Native Instruments’ TRAKTOR PRO 3 (available separately) . Use it to intuitively control and scratch with digital audio files stored on your computer. Find out more about the Pioneer DJ Certified program.
The DJM-V10 supports the extended PRO DJ LINK ShowKontrol protocol. This enables DJs, technical producers, LJs, and VJs to use all the key information from the DJM-V10, such as fader and knob positions, to align sound and visuals to create shows that blow audiences awayMain
Features
MIDI Control
Full assignable MIDI controls
ProDJ Link
Yes
Booth EQ
Yes
P-LOCK Fader Caps
Yes
Auto Standby
Yes
DVS Control
• rekordbox
• Serato DJ Pro
• TRAKTOR PRO 3
What's in the box
• DJM-V10
• Power Cord
• Warranty (for some regions)
• Quick Start Guide
• Precautions for Use
Specifications
Width
437.6 mm
Height
107.9 mm
Depth
467 mm
Weight
11.9 kg
Frequency Range
20 - 40000 Hz
Sampling Rate
96 kHz
A/D Converter
32 bit
D/A Converter
32 bit
S/N Ratio Line
105 dB
S/N Ratio Phono
88 dB
S/N Ratio Mic
79 dB
Distortion
< 0.005 % (LINE)
Channels
EQ
4 band
EQ Range
[Hi/Low] -∞ ~ +6 dB / [Hi Mid/Low Mid] -26 dB ~ +6 dB dB
COMP
Yes
Performance Control
Channels
6
Filter
• HPF
• LPF
SEND
• Short Delay
• Long Delay
• Dub Echo
• Reverb
• 2 Externals (1/4-inch TS jack)
MULTI I/O
• 1/4-inch jack
• USB (Type A)
Beat FX
• Delay
• Echo
• Ping Pong
• Spiral
• Helix
• Reverb
• Shimmer
• Flanger
• Phaser
• Filter
• Trans
• Roll
• Pitch
• Vinyl Brake
FX Frequency
Yes
X-PAD
Yes
rekordbox Quantize
Yes
Master Isolator
Yes
Crossfader
Crossfader Type
Magvel Fader
CURVE Assignable
Yes
Fader Curve
3
Mic
Mic Connection
• XLR / 1/4-inch Jack Combo
• 1/4-inch TRS Jack
Talkover
3 Position Switch
Talkover Attenuator
Yes

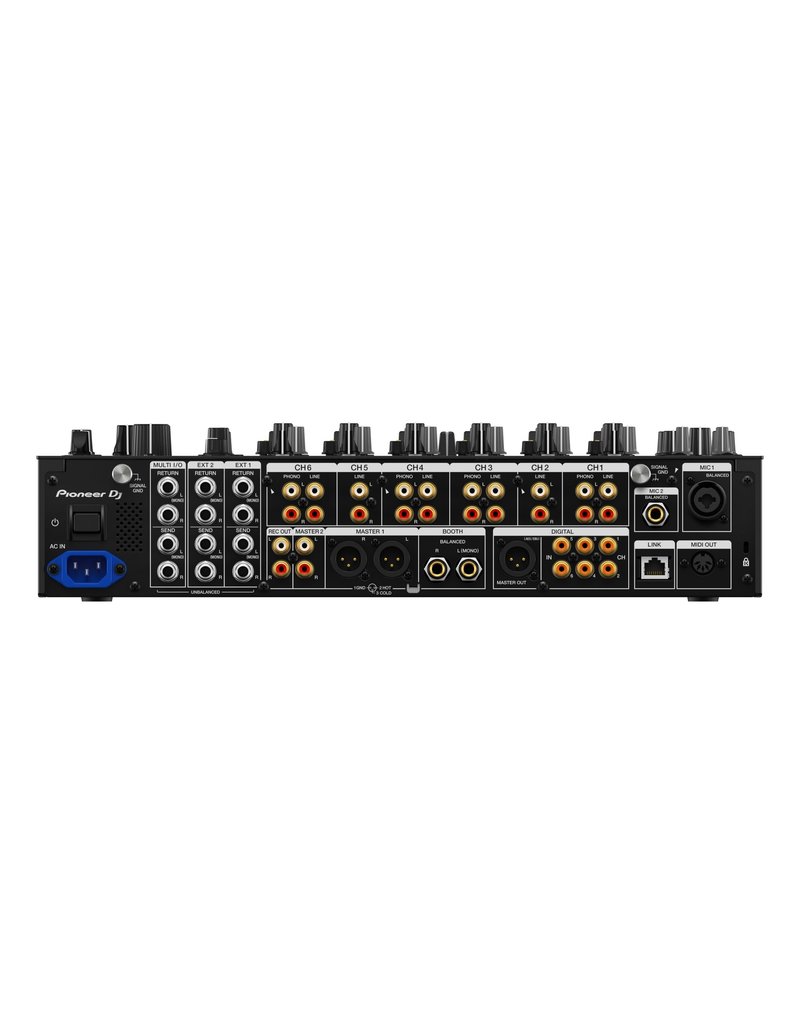

Terminals
Inputs
• 6 DIGITAL (Coaxial)
• 6 LINE (RCA)
• 4 PHONO (RCA)
Send/Return
• 3 SEND (1/4-inch TS jack)
• 3 RETURN (1/4-inch TS jack)
LAN
1
USB
• 2 USB B ports
• 1 USB A port
Outputs
• 2 MASTER (XLR, RCA)
• 1 BOOTH (1/4 inch TRS Jack)
• 4 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
• 1 REC OUT (RCA)
• 1 DIGITAL (AES/EBU)
• 1 MIDI (DIN)
