Shure GLXD1+ Digital Wireless Dual Band Bodypack Transmitter - GLXD1+=-Z3

In stock
+ -

Product description

Key Features
  • For Use with GLX-D+ Receivers
  • Use with Lav/Headset Mic or Instrument
  • TA4M Connector
  • Transmits on 2.4 and 5.8 GHz Frequencies
  • 10mW RF Output Power
  • On/Off Switch
  • Compatible with 12-Hr Rechargeable SB904
  • USB Recharging with Battery Inside

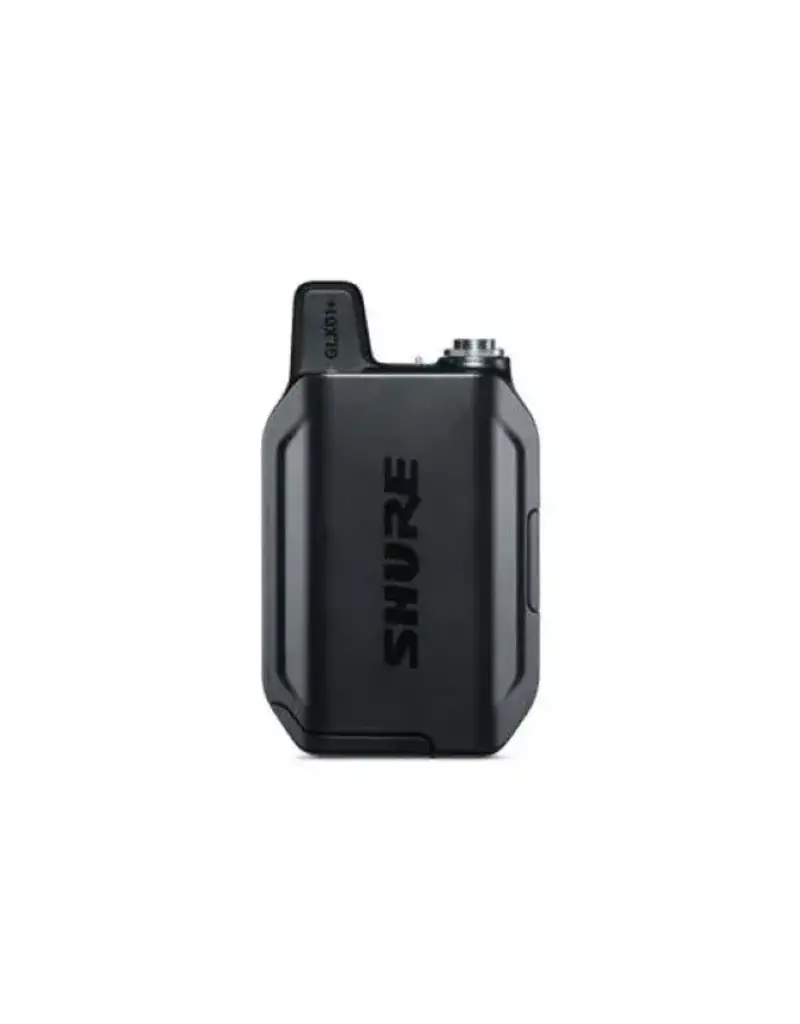

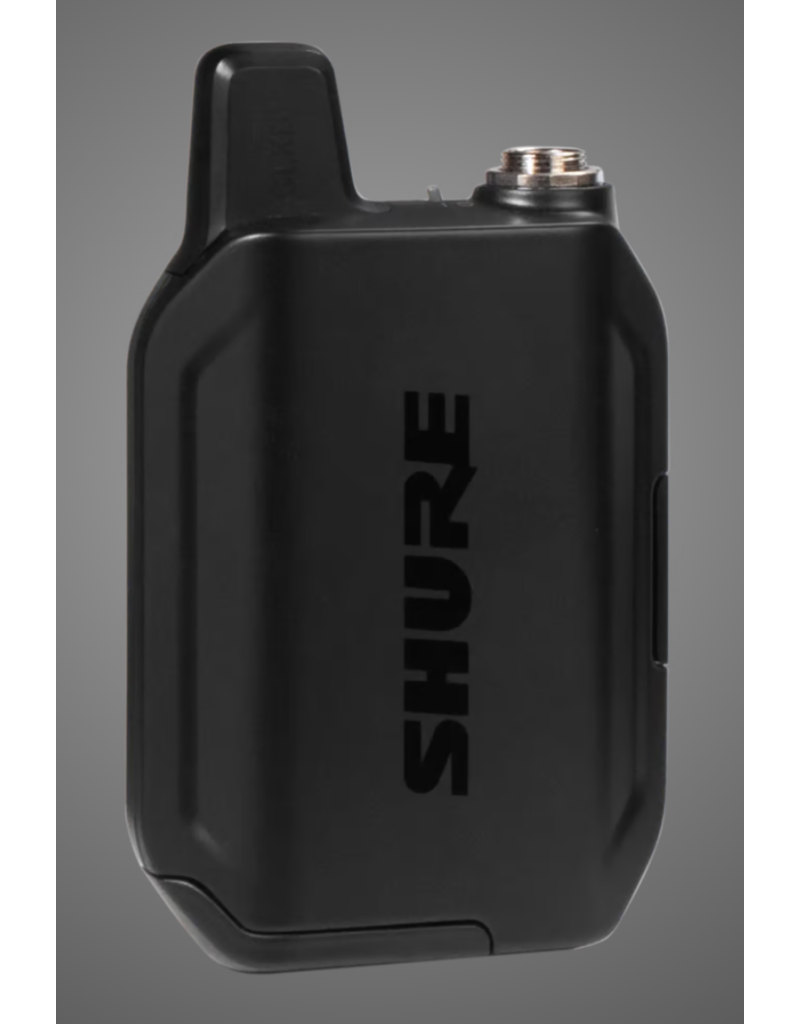

The Shure GLXD1+ is a digital bodypack wireless microphone transmitter compatible with GLX-D+ receivers. The transmitter offers a comfortable, lightweight design with durable metal housing and runs for up to 12 hours on its included rechargeable lithium battery.

Ready to Connect!
The GLXD1+ is equipped with a TA4M connector that allows you to plug in a wide variety of compatible microphones and cables.


  • The WL185 lavalier microphone delivers natural vocal reproduction for presenters, performers, clergy, and lecturers working in high-volume environments.
  • The WL93 omnidirectional lavalier mic offers consistent pickup, even when the performer turns away from the mic.
  • The discreet MX153 miniature earset mic provides exceptional clarity in spoken word applications.
  • Shure offers several headset options. Choose a PGA31 headset for everyday applications, or try the SM31 Fitness or SM35 Performance models for more active presentations.


  • The WA302, WA304, and WA305 guitar cables let you connect the bodypack transmitter to a guitar or bass.


  • The WB98H/C flexible gooseneck instrument microphone attaches to brass, woodwind, and percussion instruments and connects to the bodypack transmitter.
Dependable Wireless Performance
  • GLX-D+ Dual-Band Digital Wireless systems operate in both the 2.4 and 5.8 GHz frequency ranges, automatically scanning both to select the one that offers the higher number of clean channels.
  • The system offers true digital diversity, which means two antennas and two independent receiver modules work together to reduce RF signal dropouts.
  • In addition, the GLX-D+ transmits on its own main frequency just like a traditional system, but it also transmits on 2 extra "backup frequencies" at the same time. If the system detects interference on the main frequency, it will switch to one of the backups automatically without the user even knowing.
Intelligent Battery Rechargeability for Uninterrupted Performance
  • The GLXD1+ bodypack transmitter runs on an intelligent SB904 rechargeable lithium-ion battery (included).
  • The battery provides up to 12 hours of continuous use on a full charge.
  • The SB904 battery can be recharged in the GLXDR4+ receiver's charging bay (located on the front panel). The charging bay can also be used to recharge a spare battery while the transmitter is in use.

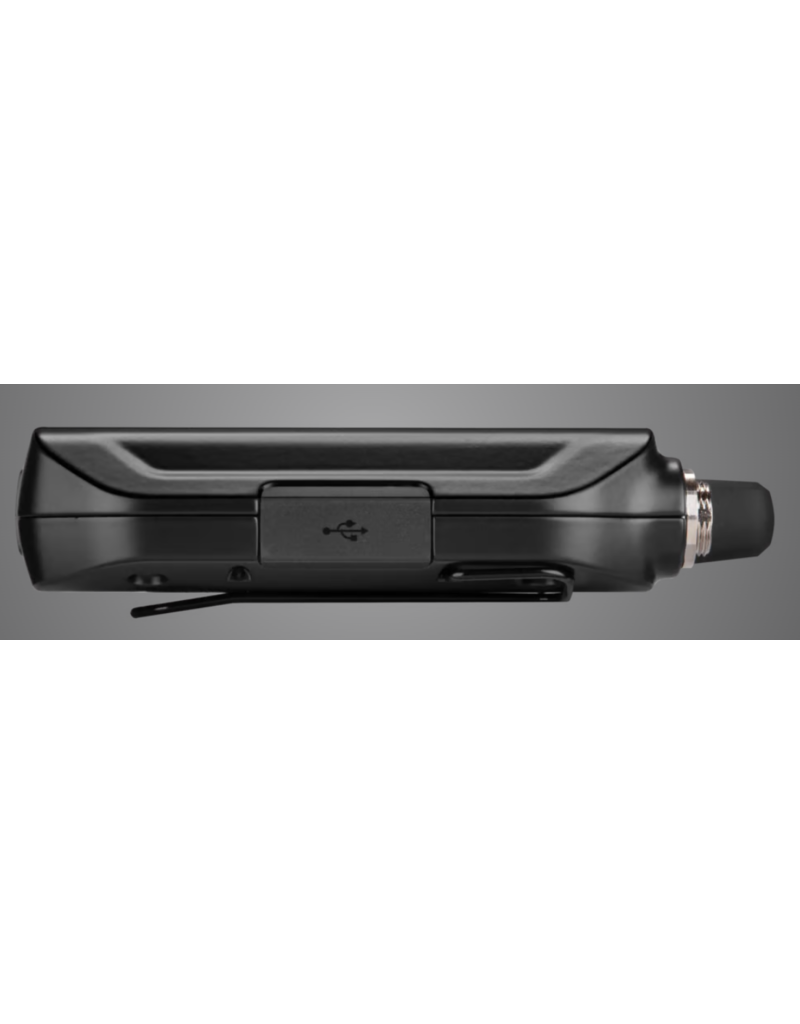

  • Alternately, the SB904 can be recharged while in the transmitter with a USB charging cable.
  • Just a 15-minute quick charge provides 1.5 hours of use.
  • The SB904's remaining battery life is displayed in hours and minutes from the receiver's front panel.

Wireless Technology: Digital 2.4 GHz/5.8 GHz
Max Operating Range: 100' / 30.5 m
Transmitter Type: Bodypack
Audio I/O: 1 x TA4/Mini-XLR 4-Pin Male Unbalanced Input (Locking)

RF Frequency Band: Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz
RF Bandwidth: 208.5 MHz
RF Channel Scanning: Auto-Scan
Max Operating Range: 100' / 30.5 m
Built-In Recorder: No
Timecode Support: No
Mobile App Compatible: No
*As of February, 2023: Check with manufacturer for the most up-to-date compatibility
Encryption: No
Modulation: Proprietary (with Back Channel)


Transmitter Type: Bodypack
RF Output Power: 10 mW
Audio I/O: 1 x TA4/Mini-XLR 4-Pin Male Unbalanced Input (Locking)
Included Cable Connector: No
Pad: No
Muting: Off/On Switch
Audio Input Level: 8.4 dBV
Auto-Level Control: No
Signal Processing: No
Frequency Response: 20 Hz to 20 kHz (Dependent on Mic)
Sync Method: Proprietary
Antenna: 1 x External, Fixed (Beltpack)
Power Requirements: Battery
Battery Type: 1 x Shure SB904 (Included)
Internal Battery Capacity: 2420 mAh
Battery Charging Time: .25 to 3 Hours
Approx. Battery Life: 12 Hours
USB/Lightning I/O: No
Display & Indicators: LED (Battery Status, Sync)
Housing: Metal, Plastic
Dimensions 2.6 x 4.5 x 1.1" / 67 x 115 x 28.5 mm
Weight: 5.4 oz / 153 g (without Batteries)

Packaging Info
Package Weight: 0.86 lb
Box Dimensions (LxWxH): 12.1 x 5.2 x 3.2"
