ProX

ProX 24 In. x 24 In. 6mm Aluminum Base Plate for F34 and F33 Trussing Fits Most Manufacturers W-Conical Connectors (XT-BP24A)

$179.99
XT-BP24A
7711
XT-BP24A
Out of stock
+ -

Product description

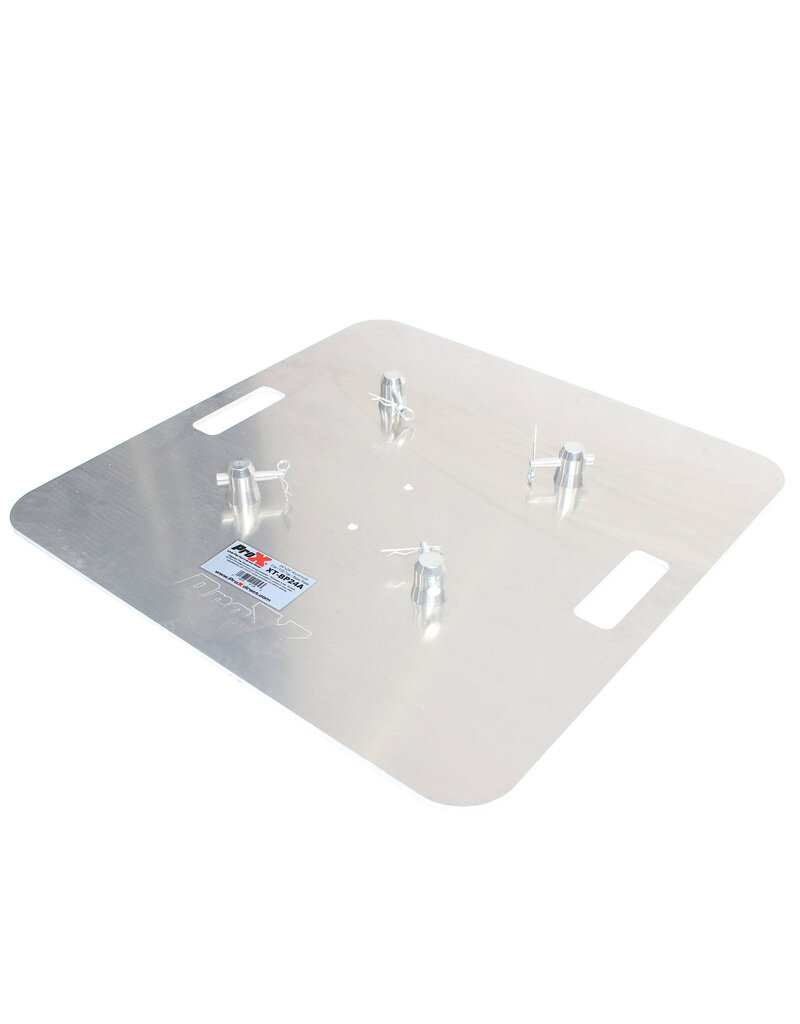

ProX XT-BP24A 24 In. x 24 In. 6mm Aluminum Base Plate for F34 and F33 Trussing Fits Most Manufacturers W-Conical Connectors

Description

The ProX XT-BP24A 24" x 24" Aluminum Base Plate is made with 6mm AWT6 6082 Aluminum Plate for lighter weight and weighs 14lbs each.  For standard-sized F34 square frame and F32 triangle truss. Protect your base plates with fabric carrying bags available separately. XB-BP24TB

XT-SQ SERIES DIMENSIONS:

  • Height: 11.42in / 290mm
  • Width: 11.42in / 290mm
  • Weight: 21lb per 3.28 ft / 9,5kg per meter
  • Main Tube: 2in / 50mm
  • Wall Thickness:  .08in / 2mm
  • Braces: .75in / 20mm

Includes connecting hardware set.

ProX Truss products utilize industry-standard dimensions to be compatible to connect to/with many other manufacturers trussing.


Features

  • Manufactured in our Own Factory!
  • Material: 6mm EN-AWT6 6082 Aluminum
  • Lighter Weight
  • Fits most manufacturers with F34 Conical Couplers


To Fit

Fits Most Manufacturers F34 Trussing W/Conical Connectors


Dimensions
24.00"L x 24.00"W x 0.50"H
Weight: 14.00 lbs

Shipping Dimensions
25.00"L x 25.00"D x 3.00"H
Shipping Weight: 17.00 lbs

Suggested Shipping Method: Parcel

UPC
019372411253
