Chauvet DJ GigBar 3 ILS 3-in-1 LED Lighting System
(free shipping on orders over $500 within the continental USA)
GigBar 3 ILS brings on the good times fast with Instant Light Show technology that wirelessly syncs multiple fixtures of different types. Get in and out quickly, and spend less time on setup, with an ILS-compatible 3-in-1 pack-n-go kit that comes with tripod, wireless footswitch and carry bags. GigBar 3 ILS includes an LED strip for eye-candy effects, LED pars for color wash coverage, and LED derbies that send multicolored chasing beams across the dancefloor. Add up to 4 additional fixtures to create your own custom mobile lighting setup.
GigBAR 3 ILS

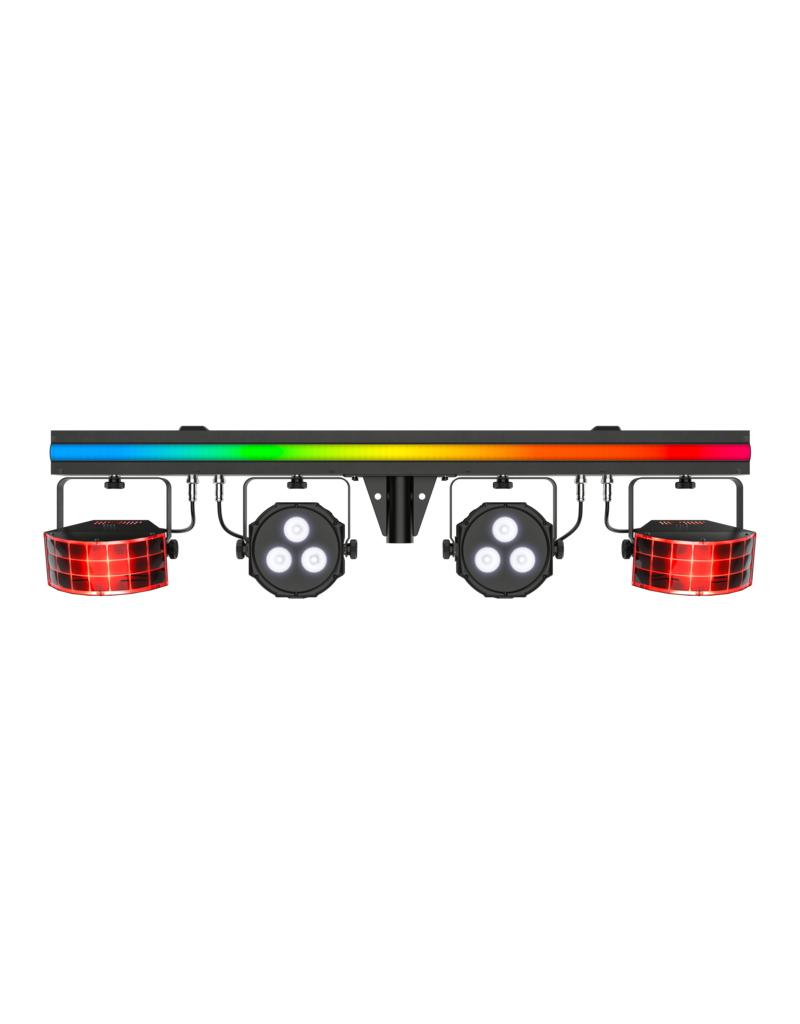

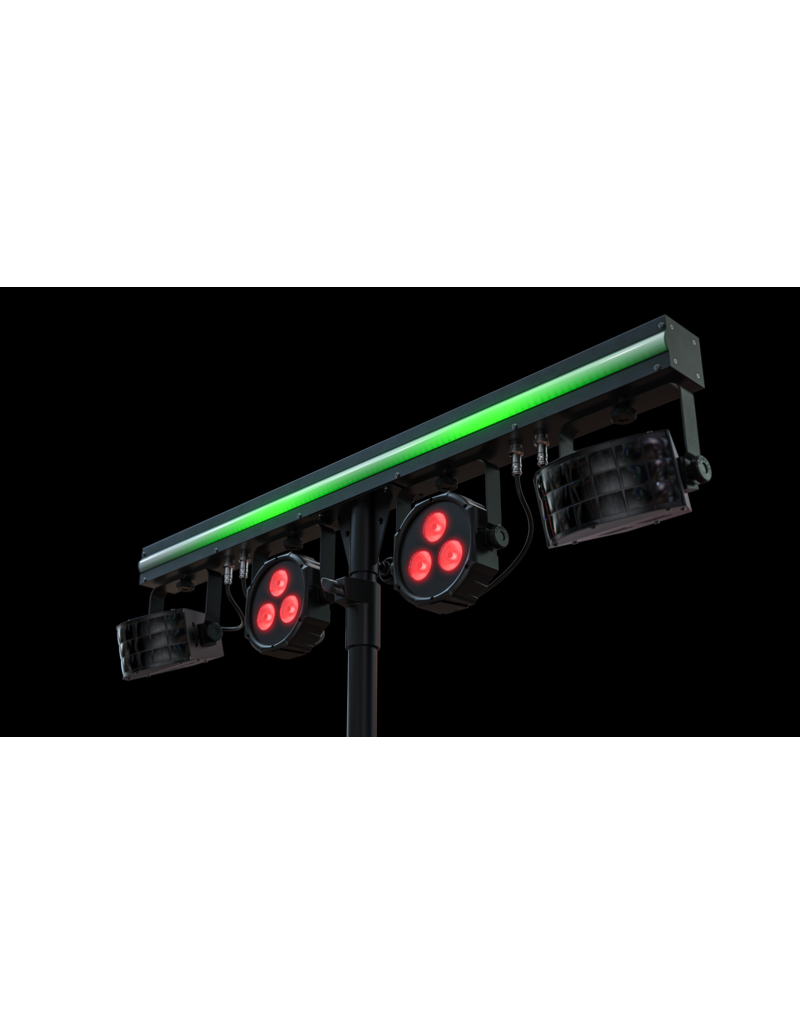

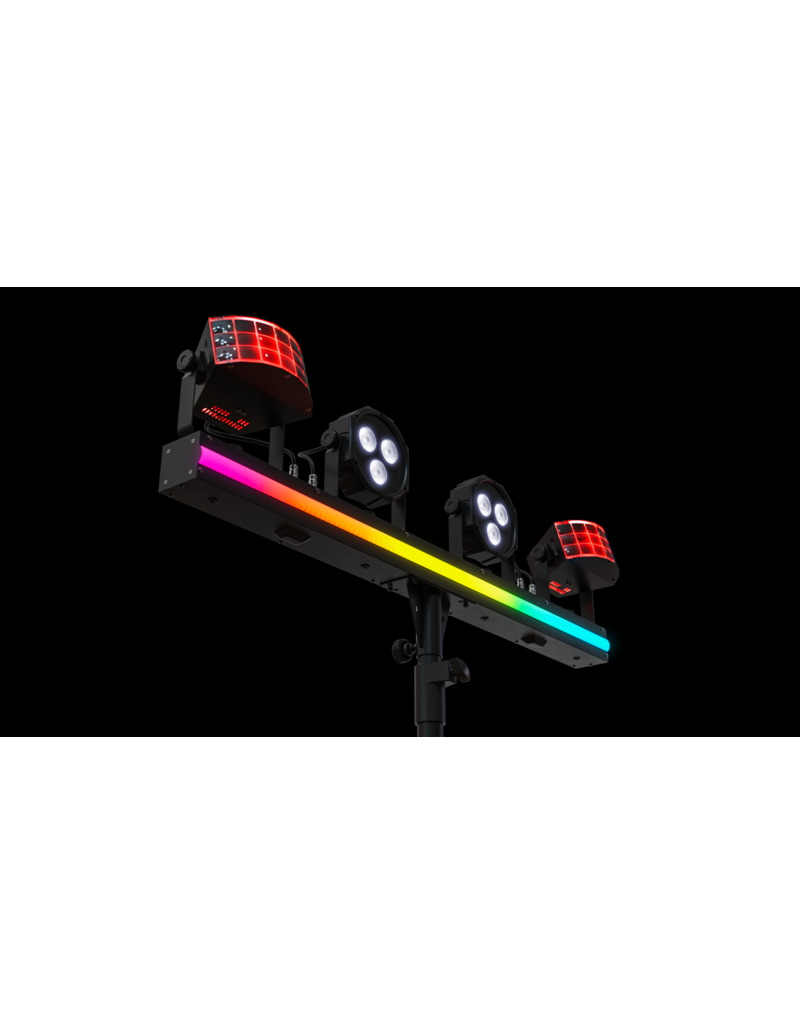

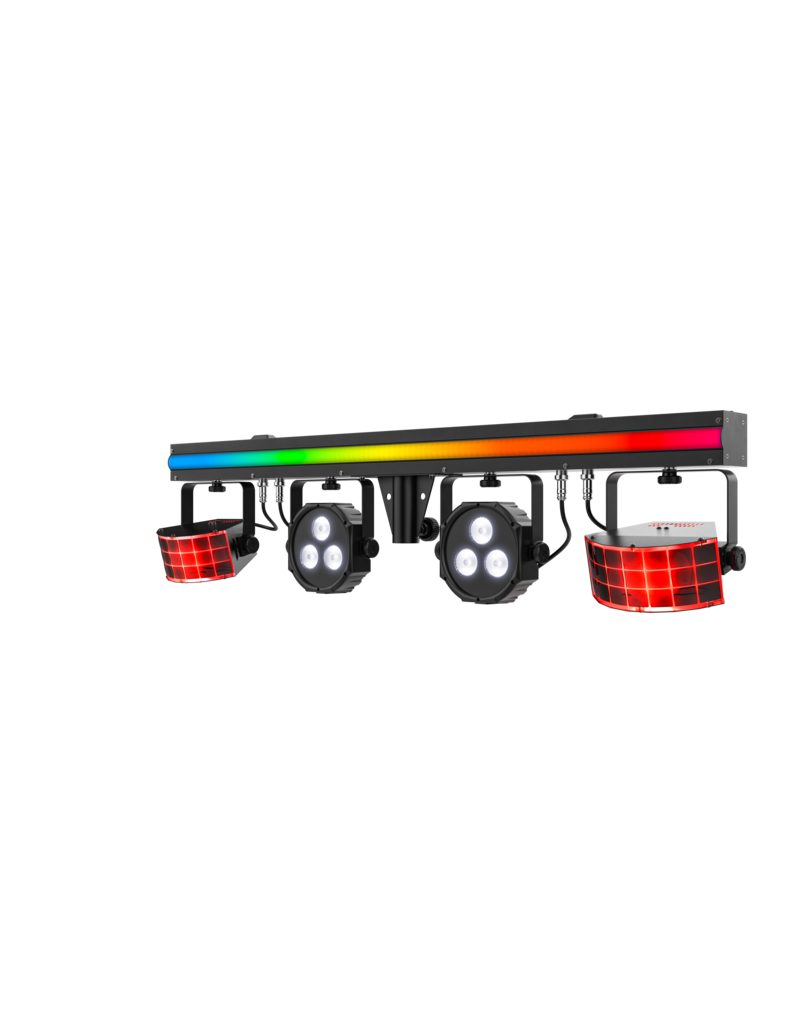

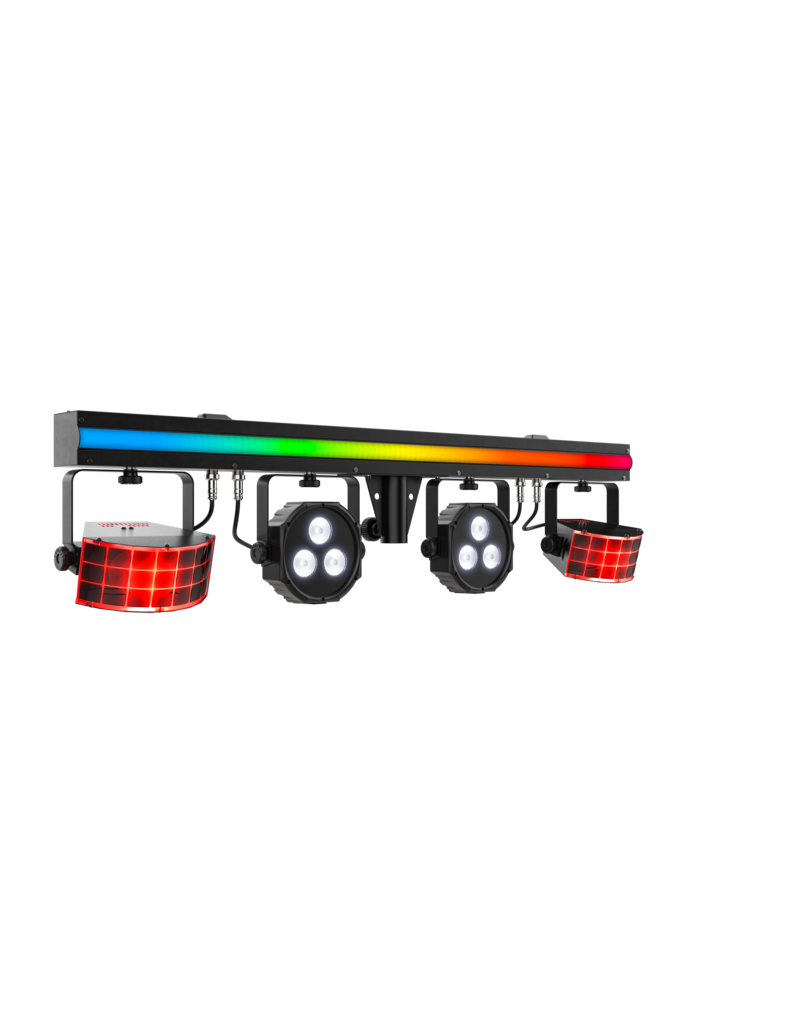

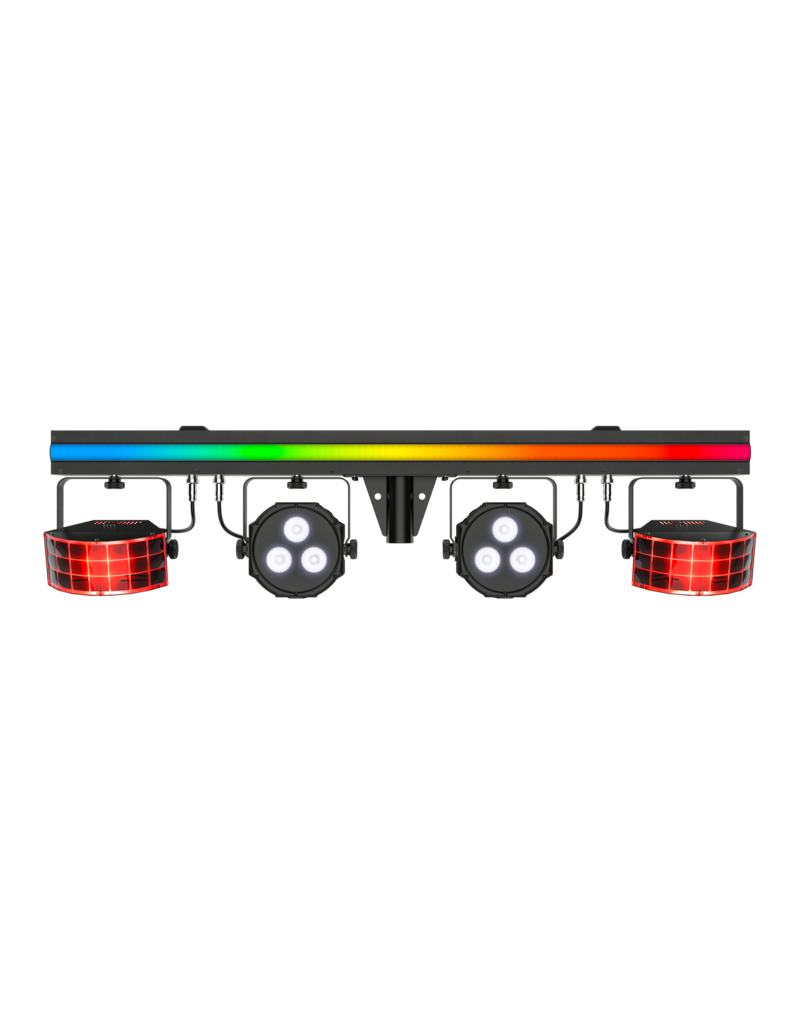

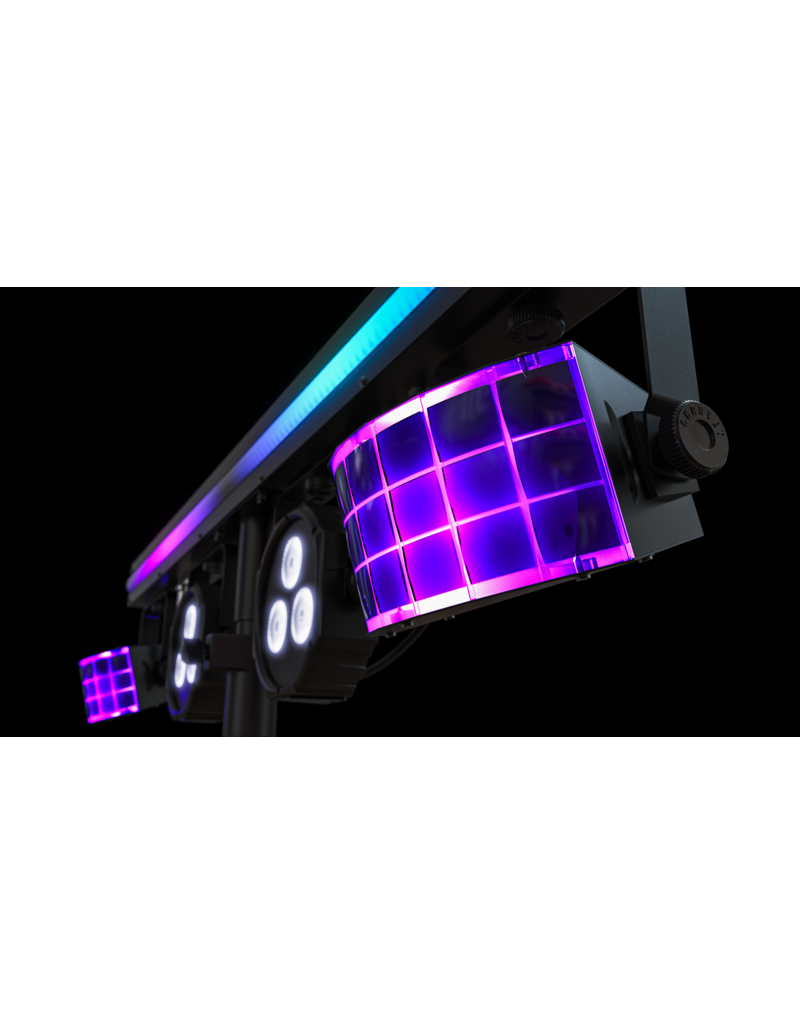

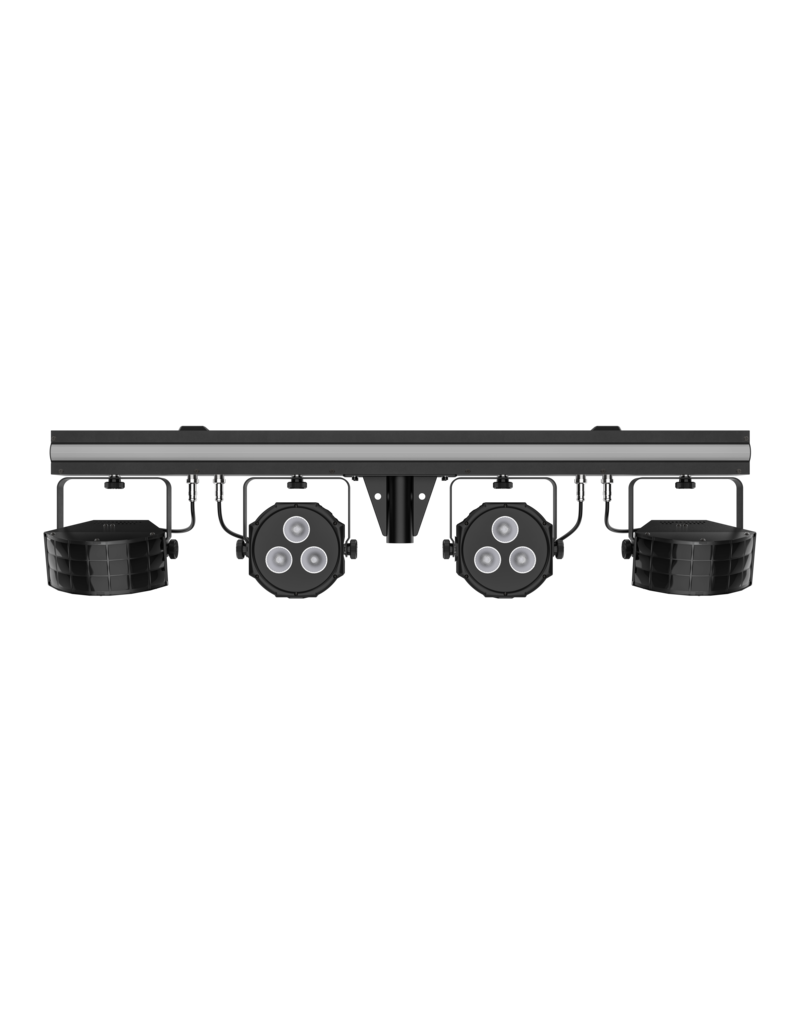

3-in-1 light that includes a pair of LED derbies, LED pars, and an LED strip, all mounted on one bar

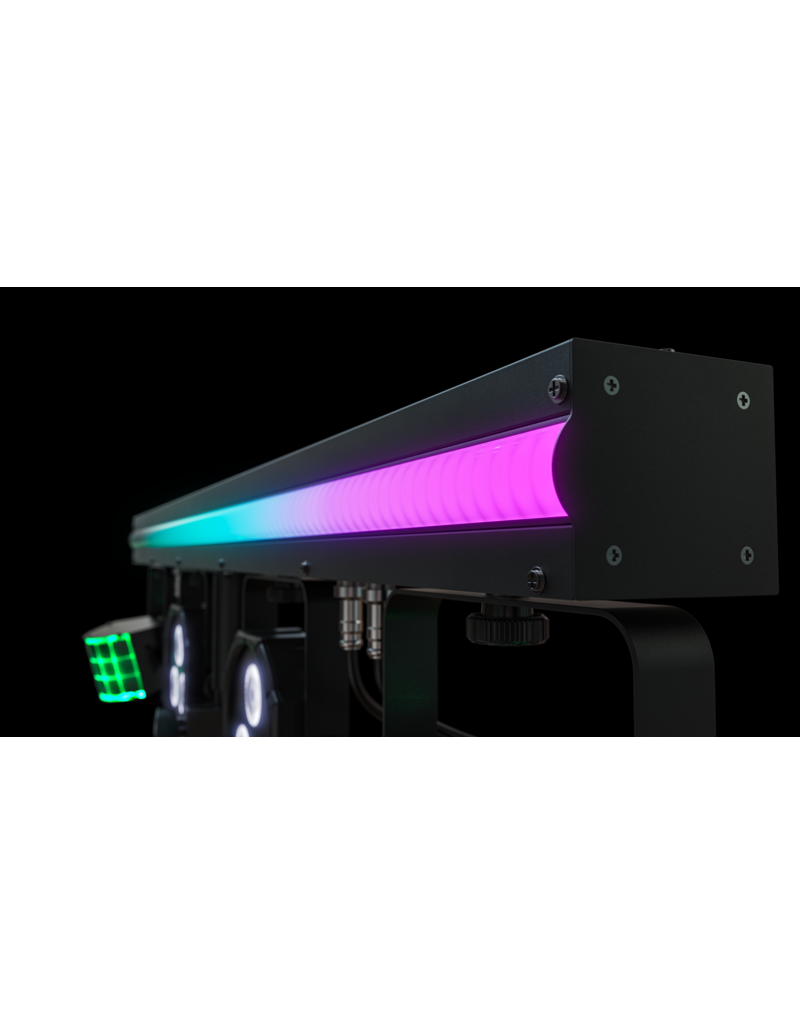

Built-in LED strip adds pizazz and eye-candy effects to mobile entertainment setups
ILS compatibility for use in the ILS ecosystem

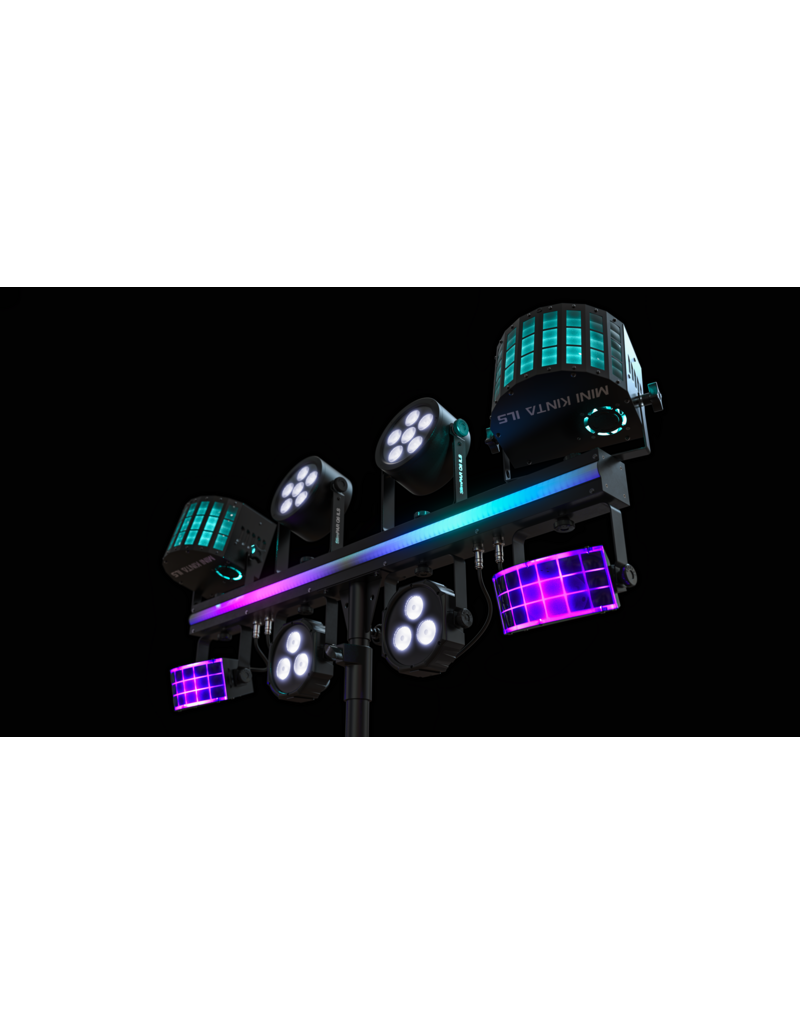

Create the ultimate light show by mounting up to 4 additional
fixtures to the top of the GigBar 3 ILS
Reversibletripodbracketallowsforupsidedownmounting

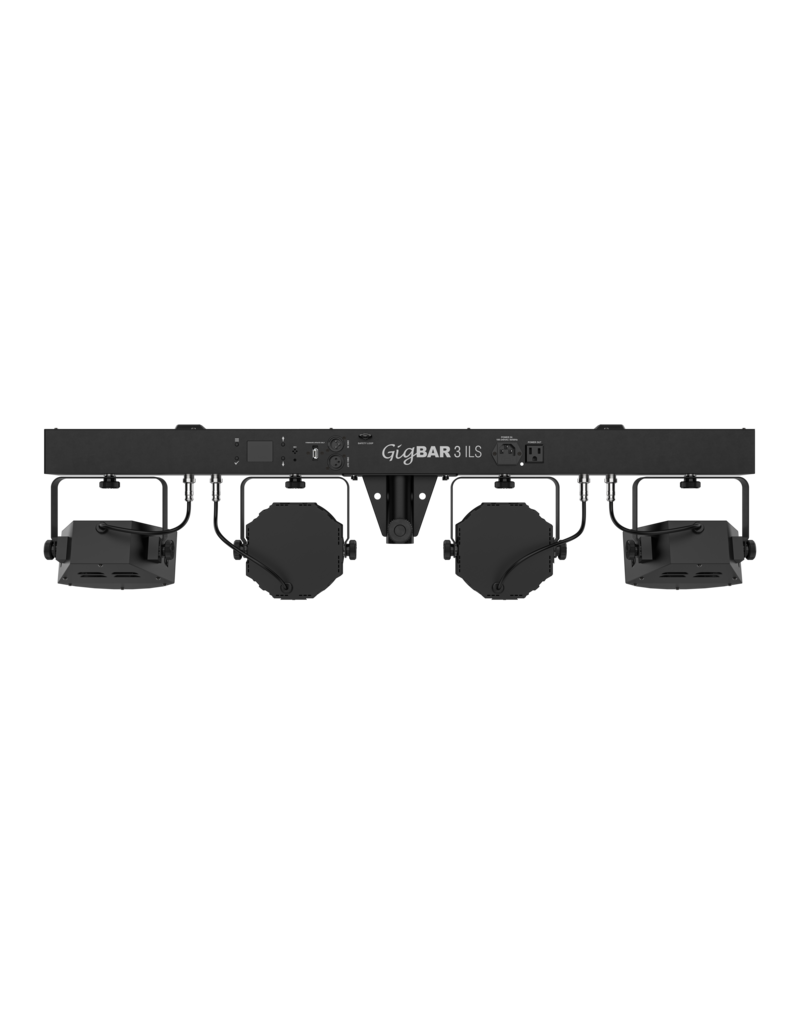

Easy navigation and access all functions directly from the full-
color LCD display

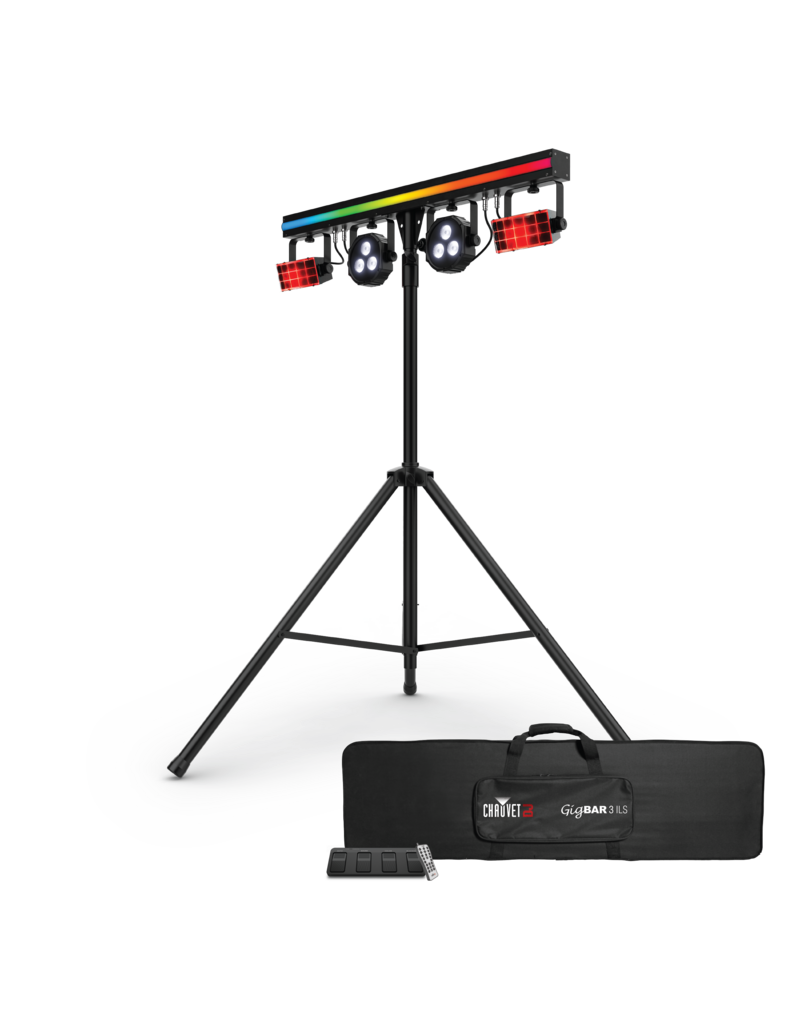

Get in and get out quickly with the included tripod, wireless
footswitch, and FREE carry bags
Phenomenal,built-in,automated,andsound-activated
programs that include all 3 effects to make one complete show
Easy control from the display, included RF Remote, wireless
foot switch or DMX to take your gig to a higher level
Save time running cables and extension cords by power linking
multiple units
Specifications
DMX Channels: 2, 21, or 132
DMX Connectors: 3-pin XLR
Light Source (pars): 6 LEDs (quad-color RGB + UV) 3.7 W 1A),
50,000 hours life expectancy
Light Source (LED Strip): 74 LEDs (red, green, blue) 5 W (.03 A),
50,000 hours life expectancy
Light Source (derby): 6 LEDs (2 red, 2 green, 2 blue) 3 W (.6 A),
50,000 hours life expectancy
Strobe Rate: 0 to 20 Hz
Stand Height: 4.8 ft to 7.8 ft (1.5 to 2.4 m)
Tripod leg width: 3.9 ft (1.2 m)
Fits Tripod Size: 1.5 in (37.4 mm)
BeamAngle(pars):13°
Field Angle (pars): 24°
Coverage Angle (Derby): 114°
Coverage angle: ( LED Strip ) 174°
Operating Frequency (D-Fi): 2.412 to 2.484 GHz
Cable Length: 9 ft (2.844 m)
Foot Switch Operating Frequency: 433 MHz
Foot Switch Max Unobstructed Distance: 100 ft (30.5 m)
Footswitch battery: 9V, 300mA
Illuminance (pars): 1,205 lux @ 2 m (per head)
Power Linking: 11 units 120 V; 18 units 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 47 W, .7A 120 V, 60 Hz
Power and Current: 45 W, .4 A 230 V, 50 Hz
Weight: 13.2 lbs. (6 kg)
Size: 41.2 x 3.7 x 10.7 in (1047 x 94.5 x 272 mm)
Optional Controllers: ILS Command, RF Remote
Approvals:CE,ROHS,FCC
Included in the Box
