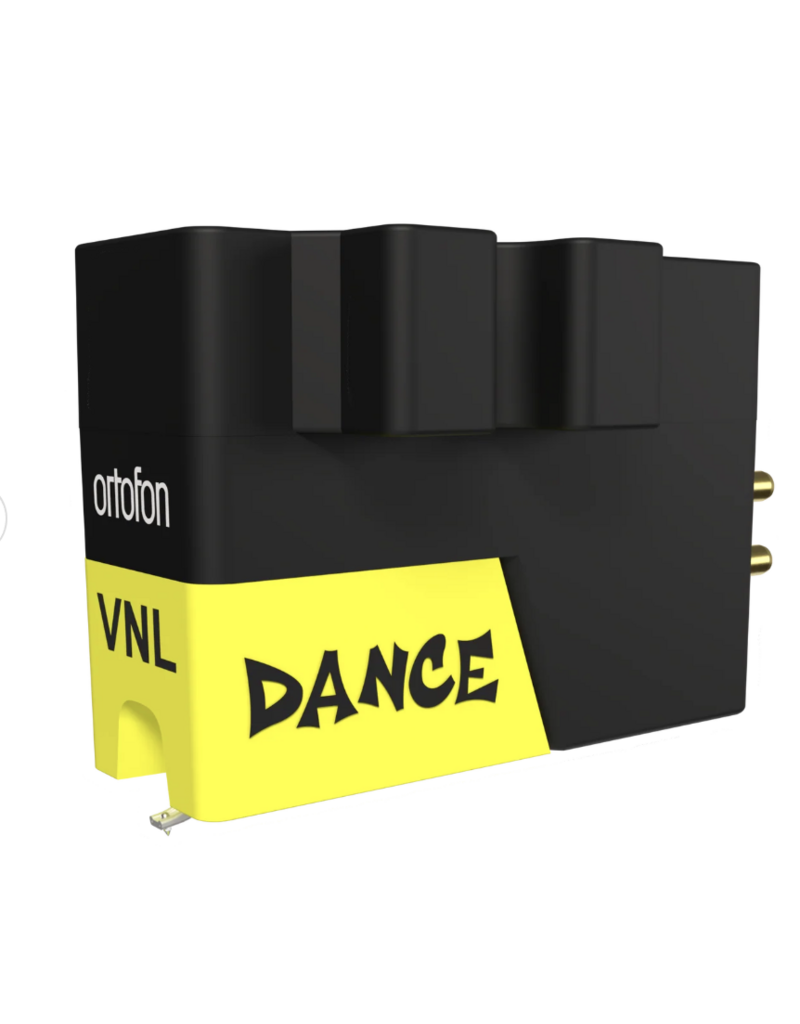

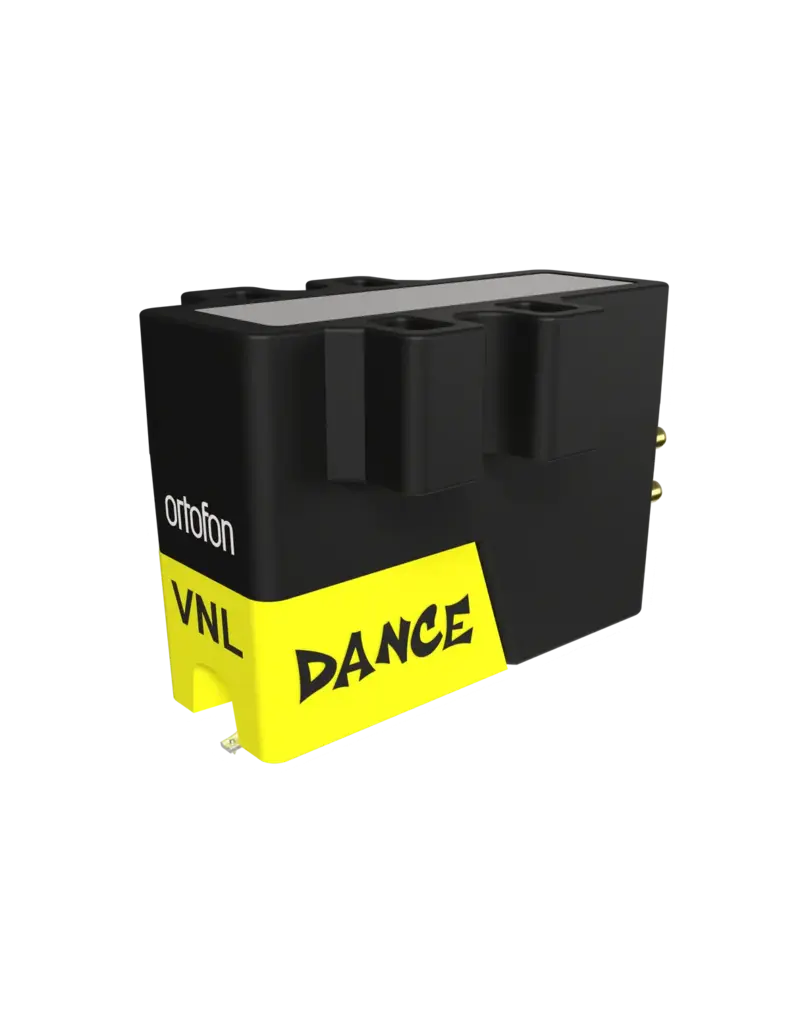

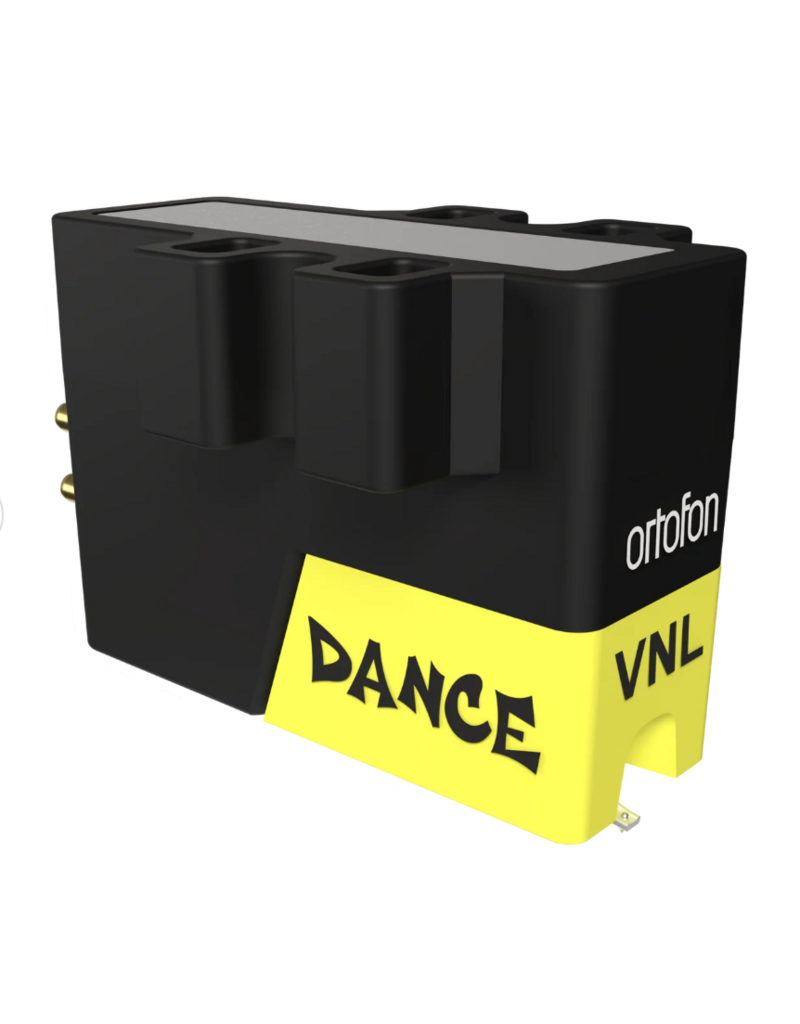

Ortofon VNL Dance Elliptical Stylus
Ortofon just leveled up with the all-new VNL TRIX and VNL DANCE, the latest additions to the iconic VNL series. Built tough, tuned for performance, and ready for the stage. The VNL TRIX and VNL DANCE cartridges are engineered for DJs who demand both power and precision.
With its elliptical stylus, VNL DANCE pulls more information from the groove - delivering sharper details and fuller sound compared to VNL TRIX. Built to take a beating, VNL DANCE features a rigid aluminum cantilever with Ortofon’s exclusive rubber suspension for stability under pressure. Premium tracking keeps the needle locked for professional use, and the neon-yellow fluorescent stylus glows under UV light.
Raw volume and crystal clarity
LOUD. CLEAN. POWEFULL.
Pumping a massive 10 mV output, the VNL DANCE deliver raw volume and crystal clarity to any rig, from underground raves to big-room stages. Louder than ever before, it brings pure energy to the system.
Grips the groove and never let go.
Rock-Solid Tracking
Thanks to its 100 µm trackability, the VNL DANCE resists skips and holds the groove under aggressive techniques like scratching and back-cueing. Expect reliable performance in clubs and on tour, with clean, consistent playback!
Fluorescent Stylus
Find your mark, even in the dark!
VNL DANCE features a neon-yellow fluorescent stylus that glows under UV light, making cueing faster while adding standout style to your setup. Its elliptical diamond traces the groove more precisely than the spherical shape used on VNL TRIX, delivering sharper detail and fuller sound.
Maximum flexibility adapts to any set
Interchangeable Stylus
The VNL TRIX is fully VNL-compatible - also with the classic VNL cartridges - letting you swap styli to match your vibe and flow.
-
Output voltage at 1 kHz, 5cm/sec: 10 mV
-
Tracking ability at 315Hz: 100 μm
-
Cantilever material: Aluminium
-
Stylus type: Elliptical
-
Stylus tip radius: R 18 μm
-
Stylus suspension: Ortofon exclusive
-
Coil system: Quad coils
-
Coil wire material: OFC
-
Channel separation at 1 kHz: 22 dB
-
Frequency response 20 Hz - 20 kHz: +/-3 dB
-
Dynamic lateral compliance: 12 μm/mN
-
Recommended tracking force: 4.0 grams
-
Recommended load resistance: 47 KΩ
-
Cartridge weight: 7 grams
-
Cartridge colour: Black
-
Stylus colour: Yellow
-
