VNL TRIX Premounted
Ortofon just leveled up with the all-new VNL TRIX and VNL DANCE, the latest additions to the iconic VNL series. Built tough, tuned for performance, and ready for the stage. The VNL TRIX and VNL DANCE cartridges are engineered for DJs who demand both power and precision.
With a spherical stylus mounted on a rigid aluminum cantilever and Ortofon’s exclusive rubber suspension, VNL TRIX is built to take a beating. The fluorescent white stylus makes cueing even faster, and the premium tracking keeps it locked for pro use, including heavy scratching and back-cueing.

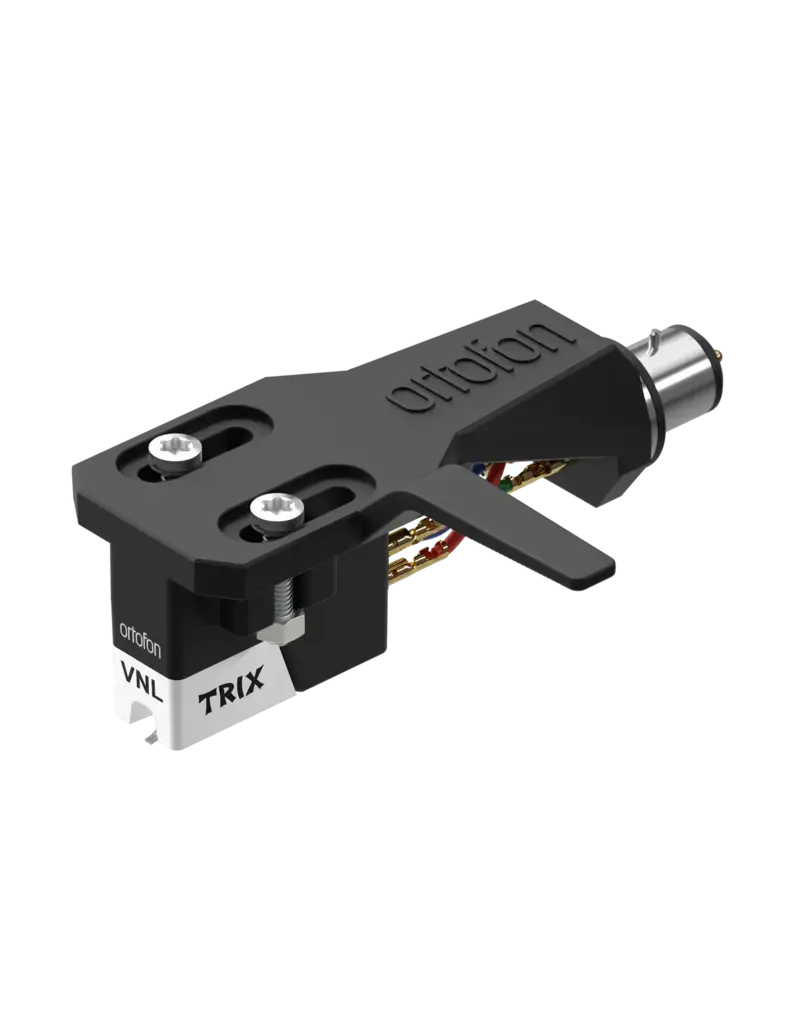

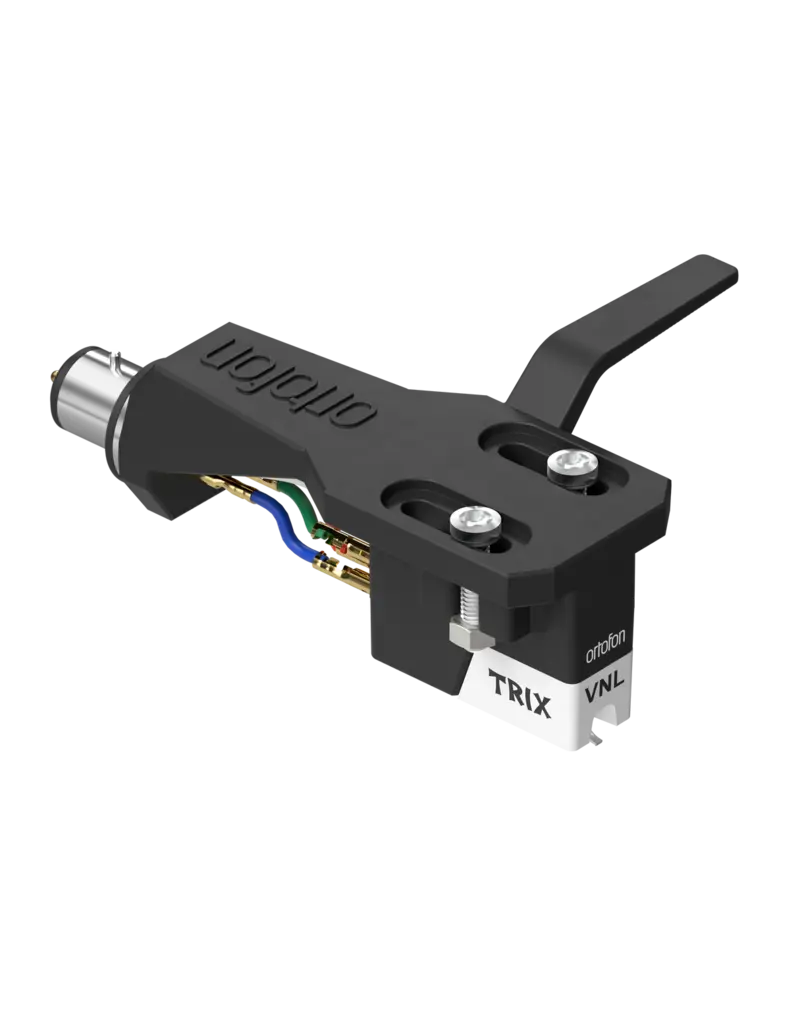

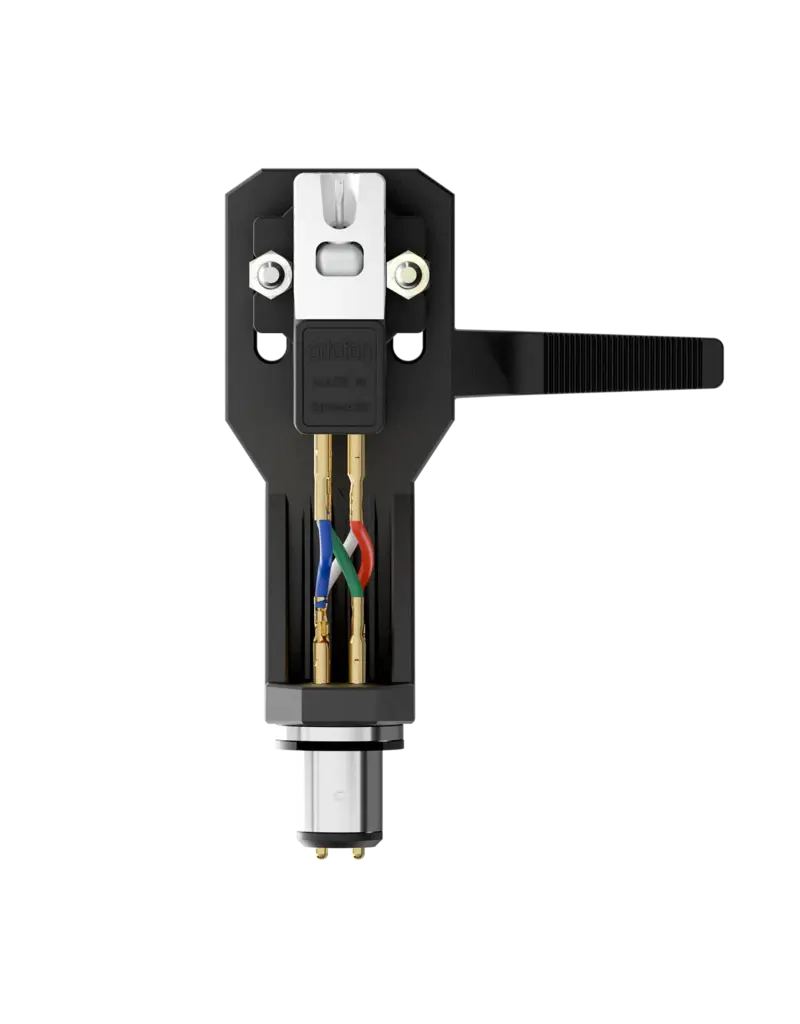

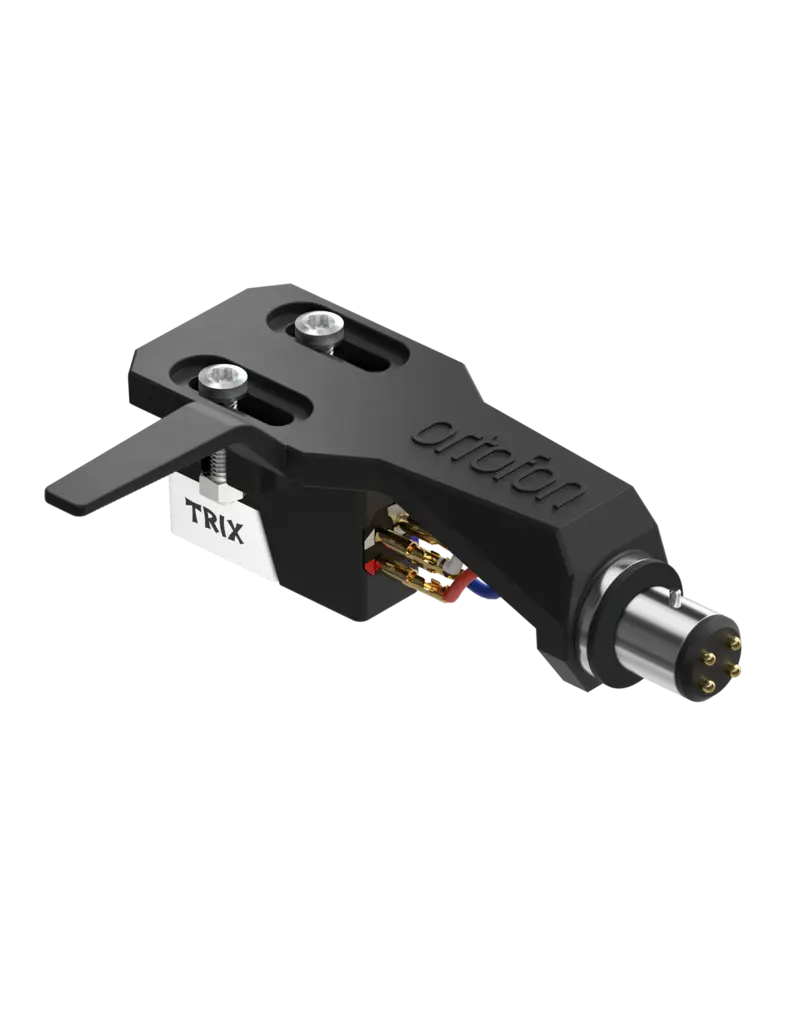

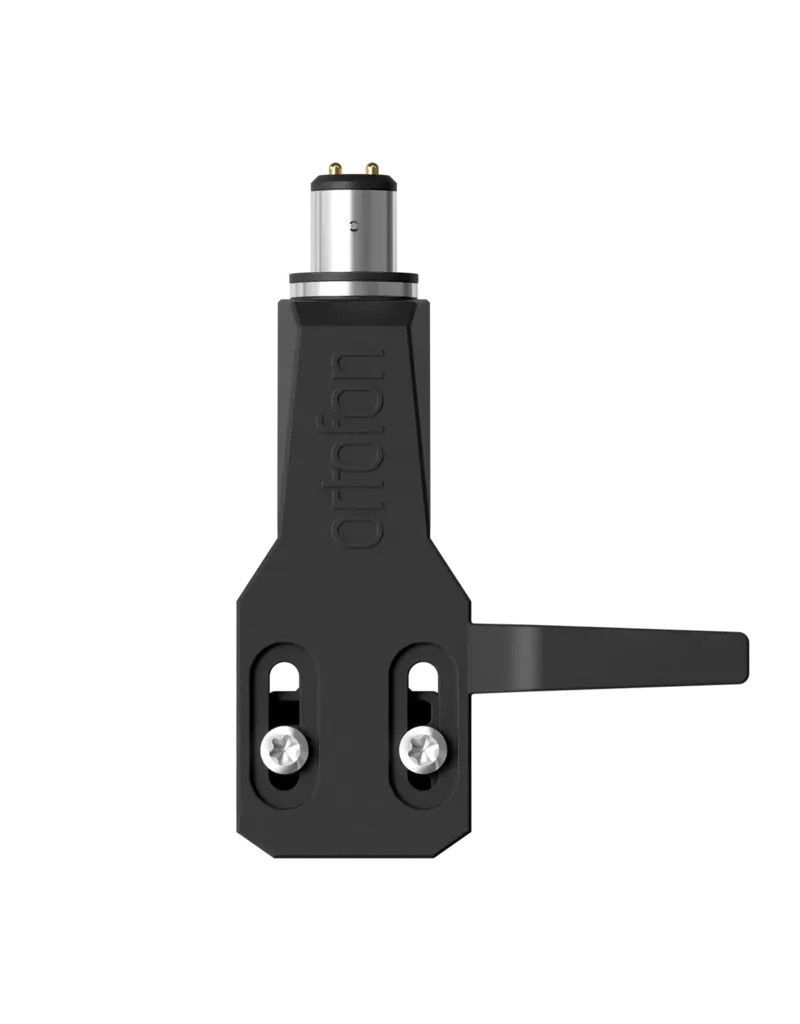

The VNL TRIX Premounted comes ready to play - factory-mounted on our new SH-2 Black universal headshell, engineered for stability, durability, and seamless integration with a wide range of turntables. Reliable and versatile, it performs equally well in everyday vinyl playback and dedicated listening sessions.
Raw volume and crystal clarity!
LOUD. CLEAN. POWERFUL
Pumping a massive 10 mV output, the VNL TRIX deliver raw volume and crystal clarity to any rig, from underground raves to big-room stages. Louder than ever before, it brings pure energy to the system.
Grips the groove and never let go!
Rock-Solid Tracking
Thanks to its 100 µm trackability, the VNL TRIX resists skips and holds the groove under aggressive techniques like scratching and back-cueing. Expect reliable performance in clubs and on tour, with clean, consistent playback!
Fluorescent Stylus!
Find your mark, even in the dark!
The fluorescent white stylus glows bright under UV light, so the tip is instantly visible on busy stages and in blackout booths. Enjoy faster cueing and cleaner beatmatching during heavy scratching and quick back-cues.
Featuring a spherical stylus mounted on a rigid aluminum cantilever and Ortofon's exclusive rubber suspension, VNL TRIX is built to take a beating!
Maximum flexibility adapts to any set!
Interchangeable Stylus
The VNL TRIX is fully VNL-compatible - also with the classic VNL cartridges - letting you swap styli to match your vibe and flow.
-
Output voltage at 1 kHz, 5cm/sec
10 mV
-
Channel separation at 1 kHz
22 dB
-
Frequency response 20 Hz - 20 kHz
+/-3 dB
-
Tracking ability at 315Hz
100 μm
-
Compliance, dynamic, lateral
12 μm/mN
-
Cantilever material
Aluminium
-
Stylus type
Spherical
-
Stylus tip radius
R 18 μm
-
Tracking force, recommended
4.0 grams
-
Coil wire material
OFC
-
Cartridge colour
Black
-
Cartridge weight
17 grams
-
Premounted cartridge weight
17 grams
-
Recommended load resistance
47 KΩ
-
Stylus colour
White
-
Replacement stylus
