Features

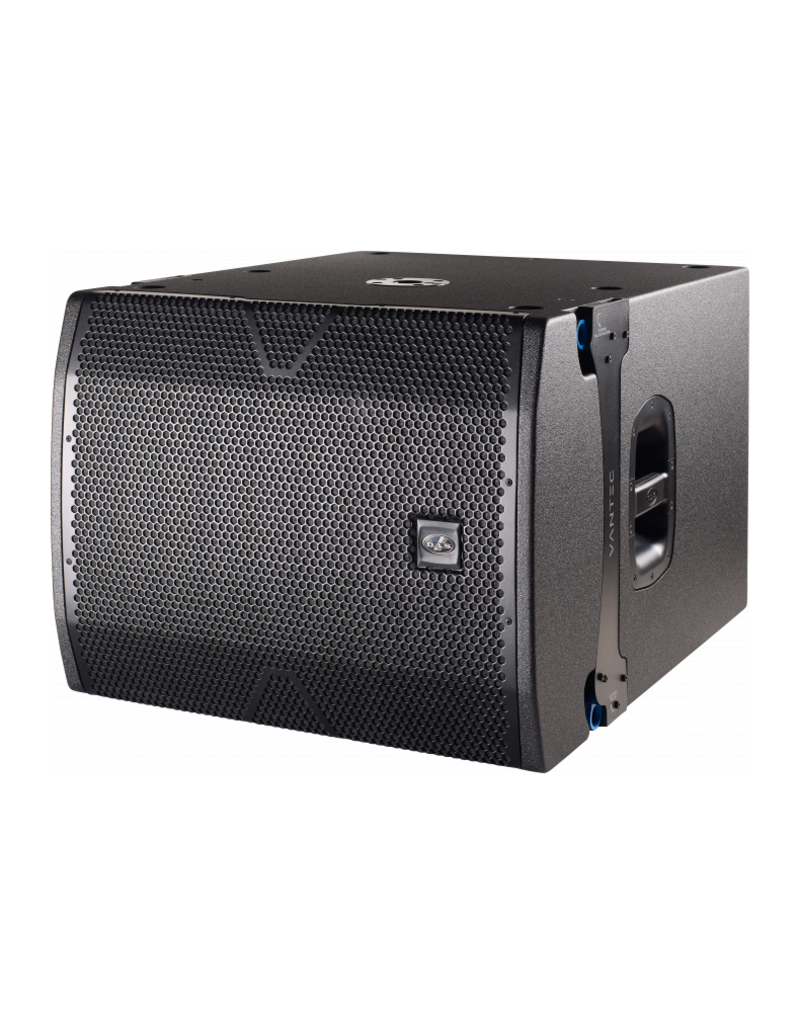

The electronics package includes a 2000 Wpeak Class D amplifier and 24-bit high-end DSP for exceptional audio reproduction. A unique “Deep-Loud” EQ switch allows users to tailor the bass output to provide a low subwoofer type response using the “Deep” setting or a louder hard-hitting performance in the “Loud” setting. On the rear panel, controls can be found for gain, polarity, and a continually variable low-pass filter which ranges from 80 Hz to 125 Hz. The VANTEC-118A is phase response coherent with the other Vantec Series active tops such as the VANTEC-20A offering precise alignment without the need for an external DSP.
Features
Active front-loaded subwoofer system
1 x 18″ DAS 18FW loudspeaker
Class D amplifier 2000 Wpeak
Digital signal processing (DSP)
Unique “Deep-Loud” bass EQ switch
Variable low-pass filter 80 Hz-125 Hz
LED ON/OFF switch on backplate
Rigging compatible with VANTEC-20A
Top located pole mount socket
Applications
Concerts and corporate A/V
Portable and live clubs
Concert halls, theaters and auditoriums
Houses of worship
Performance | |
Frequency Range (-10 dB) | 35 Hz – 125 Hz |
Maximum Peak SPL at 1 m | 134 dB |
Electronics and Connectors | |
Nominal Amplifier Power (continuous) | 1000 W |
Nominal Amplifier Power (peak) | 2000 W |
Input Type | Balanced |
Input Impeadance | 20 kohms |
Input Sensitivity | 3 V (+12 dBu) |
Audio Signal Input Connector | 2 x Female XLR |
Audio Signal Loop Thru Connector | 2 x Male XLR |
AC Input Connector | powerCon NAC3FCA |
AC Output Connector | powerCON NAC3FCB |
Operating Range | 90-127/180-250 VAC |
Current Draw 115 V | 4.4 A |
Current Draw 230 V | 2.2 A |
Enclosure | |
Enclosure Construction | Birch Plywood |
Enclosure Geometry | Rectangular |
Rigging | M10 Rigging Points |
Finish | ISO-flex Paint |
Color | Black |
Dimensions ( H x W x D ) | 490 x 615 x 785 mm 19,3 x 24,2 x 30,9 in |
Net Weight | 44,0 kg ( 97,0 lb ) |
Components | |
LF Driver | 18FW |
Shipping | |
Carton Dimensions ( H x W x D ) | 730 x 660 x 880 mm 28,7 x 26,0 x 34,7 in |
Shipping Weight | 48,0 kg ( 105,6 lb ) |
