The ADJ WMX1 MK3, powered by WOLFMIX, is a powerful standalone DMX lighting controller designed to simplify professional lighting control without the need for a computer. Compatible with virtually any DMX fixture, it offers intuitive touchscreen operation, dynamic effects generation, music synchronization, fixture grouping, and support for up to four DMX universes. Advanced Fixture Clusters allow complex multi-element fixtures to be divided into defined sections, such as pixel arrays, RGB rings, and strobes, for more intuitive individual control and enhanced integration with the WMX1 MK3’s FX engines. Whether controlling intelligent moving heads, LED fixtures, or effects lighting, the WMX1 MK3 delivers fast, creative, and reliable show control for DJs, entertainers, venues, and production professionals.
Building on the foundation established by the WMX1 and WMX1 MK2, the WMX1 MK3 introduces a refined industrial design and an all-new button mechanism, delivering enhanced responsiveness and a more satisfying tactile experience.
Featuring upgraded USB-C connectivity and a sleeker enclosure, the WMX1 MK3 incorporates a precision-molded housing engineered to align seamlessly with the new WING expansion controller (coming Q4 2026). Together, they create a unified control ecosystem designed to work perfectly side by side, expanding creative possibilities while maintaining the intuitive workflow that has made Wolfmix controllers a favorite among lighting professionals.
Specifications
Control & Performance
- Standalone DMX lighting controller
- No computer required
- Compatible with virtually any DMX fixture
- Supports up to 4 DMX universes (2,048 channels total)*
- Controls up to 680 fixtures
- Supports up to 50 device types
- 8 fixture groups
- 6 project memories
- 15,000+ fixture profiles available (3,500+ stored on controller)
- Fixture addressing, sequencing, and grouping tools
- DMX splitter functionality with universe mapping
- Automatic active-project restoration
- Import multiple fixture setups into a single project
*Additional universes require optional add-ons. Certain advanced functions require additional purchases through the WTOOLS app.
Effects & Programming
- Color FX engine with 8 effect types
- Move FX engine with 8 effect types
- Beam FX engine with 8 effect types
- 200 preset slots with hold and fade timing control
- Live Move FX registration point control
- Global FX speed and freeze functions
- Effect parameters:
- Speed
- Phase
- Sequence
- Size
- Fade
- Fan
- Flicker
Synchronization
- Music synchronization:
- Built-in microphone
- 3.5 mm line input
- BPM synchronization:
- Ableton Link OS2L
- Manual BPM Tap
- MIDI Clock via USB MIDI port
Advanced Features
- DMX input mapping with group dimmer and channel patching*
- WLINK synchronization between WMX1 controllers*
- MIDI controller support
- USB storage device support DMX channel tester
- Time-controlled flash and preset triggering
- Fixture FLIP function
- Fixture SPLIT function for multi-FX bars
- Fixture CLUSTERS function for multi-element fixtures: (IN BETA TESTING - OFFICIAL SOFTWARE RELEASE COMING NOVEMBER 2026)
- Divides fixtures into defined, named sections
- Supports pixel arrays, RGB rings, strobes, and other independently controllable elements
- Provides enhanced integration with FX engines
- Allows more intuitive control of individual fixture sections
- Project and fixture backup through WTOOLS
- Supports between 1 and 100 projects, depending on project size and available memory
- Offline 3D visualization with Easy View and WTOOLS via USB*
- *Feature requires optional add-on or additional purchase via WTOOLS app.
Display
- 4.3-inch color TFT touchscreen
- Capacitive touch technology
- Tinted glass surface
Audio
- Built-in omnidirectional electret microphone
- 3.5 mm mini-jack line input

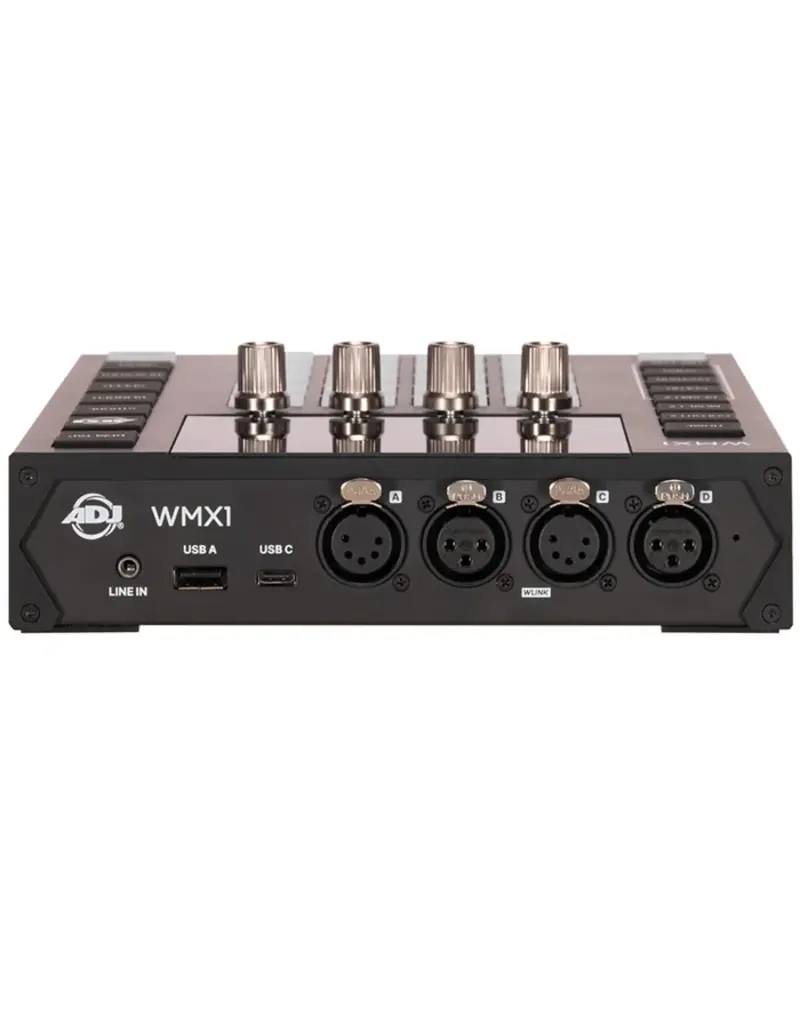

Connections
- 2 x 3-pin XLR DMX outputs
- 1 x 5-pin XLR DMX output
- 1 x 5-pin XLR DMX IN/OUT with WLINK
- USB-A port with MIDI, MSD, and WLINK support (5V, 900mA)
- USB-C power input (900mA required; 1500mA recommended for MIDI/WLINK operation)
Construction
- Housing: ABS plastic
- Base plate: Powder-coated steel
- Mounting: Integrated 100 mm VESA mounting pattern
Dimensions & Weight
- Dimensions (L x W x H): 7.68" x 8.66" x 2.44" (195 x 220 x 62 mm)
- Weight: 2.36 lbs. (1.070 kg)
Optional Upgrades
- Easy View 3D Visualizer: $99
- WLINK (+DMX IN): $49
- Additional DMX universes: $99 each (up to 2 additional universes)
Check for product Firmware updates here:
https://wolfmix.com/en/download
Specifications subject to change without notice.
